Order code not found. You may mean this product:
376-4

Three-row female connector.


Your search was with an old part number. Here is the actual version.
Available variations
Compare product
Mating products
Show matching products
Additional variants
Important notice: This product requires other products.
Show 2 required products
Accessory
6 accessories

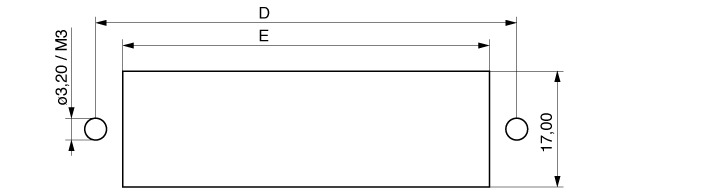

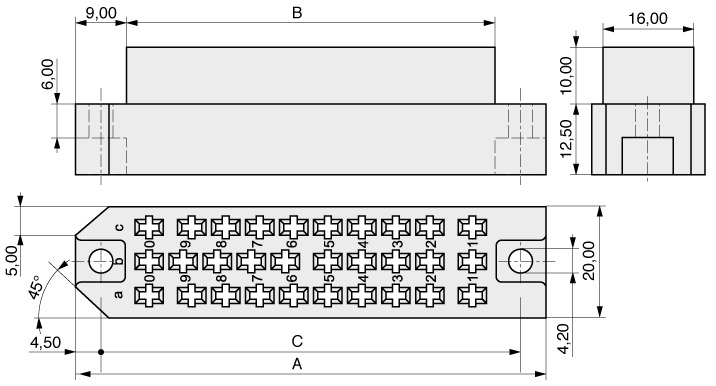

Illustration
Technical data
Moreless
Pincount 30
Gender Female
Material insulator Thermoplast UL94V-0
Operating temperature -20°C to +85°C
No of rows 3
Industry standard DIN 41622
Leading contacts ---
Packaging Standard
Pincount A B C D E
03083,0065,0074,0074,0066,00
3771234
Crimpkontakte für Steckverbinder nach DIN41622
Data sheet as PDF
Configurate Your Product
Order code
376-4-030-SXN-ZS
Please finish Product configuration first
