Order code not found. You may mean this product:
376-3

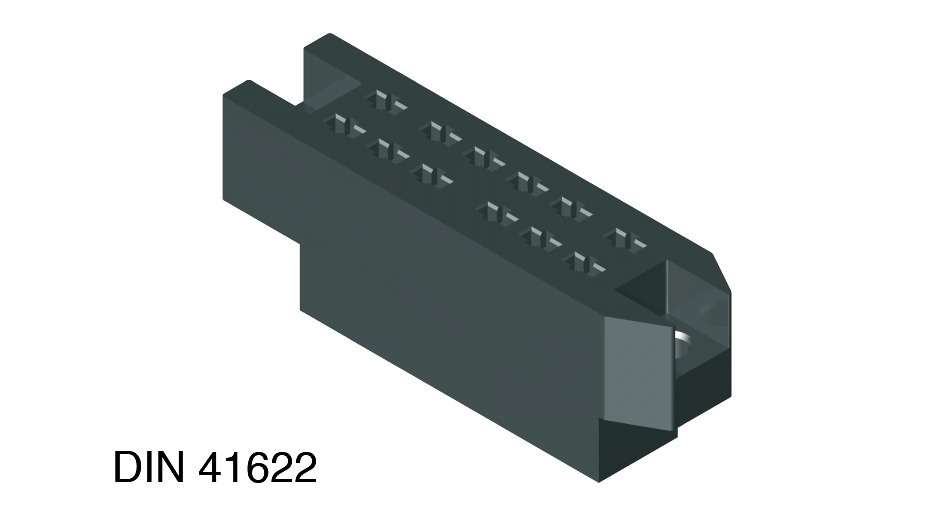

Plug / Socket Connector Series 376 Variant 3

DIN 41622 / 41618, Plug / Socket Connector

Crimp housings according to DIN 41622 in male and female version.

Available variations
Compare product
Mating products
Show matching products
Additional variants
Important notice: This product requires other products.
Show 2 required products
Accessory
5 accessories
Technical data
Moreless
Material insulator Thermoplast UL94V-0
Packaging Standard
Operating temperature -20°C to +85°C
Pincount 8, 12, 16, 20
No of rows 2
Industry standard DIN 41622
Leading contacts ---

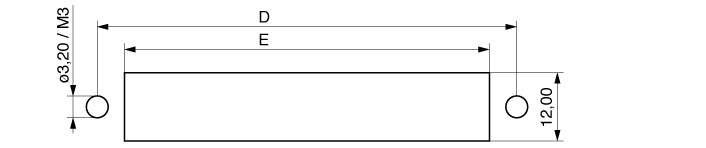

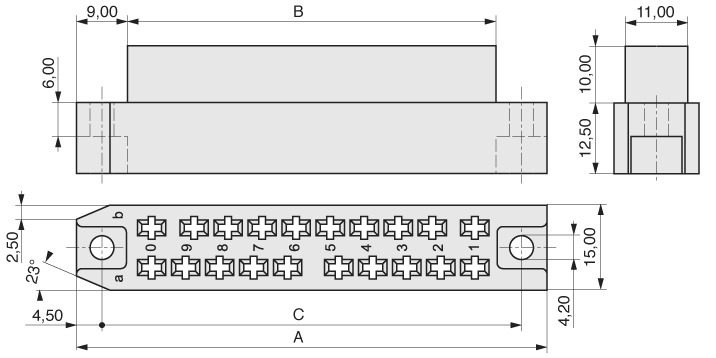

No of contactsABCDE
847,0029,0038,0038,0030,00
1259,0041,0050,0050,0042,00
1671,0053,0062,0062,0054,00
2083,0065,0074,0074,0066,00
847,0029,0038,0038,0030,00
1259,0041,0050,0050,0042,00
1671,0053,0062,0062,0054,00
2083,0065,0074,0074,0066,00
Configurate Your Product
Order code
376-3-???-SXN-ZS
Please finish Product configuration first

Pincount
