  3. D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit Series 596
  4. D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit 596 5
Order code not found. You may mean this product:
596-5

D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit 596 5

DSUB, D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit

Press-fit

Available variations
Compare product

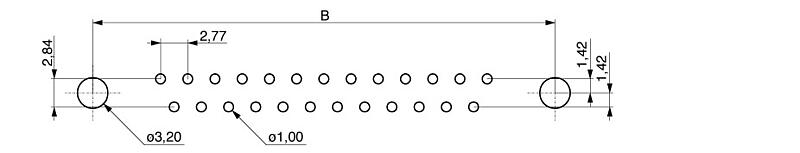

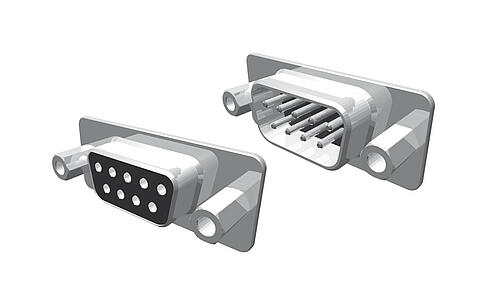

Illustration D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit  596  5
Technical data
Moreless
Pincount 9, 15, 25, 37
Gender Female, Male
Material contact Copper alloy
Plating contact Selective Au
Material insulator Thermoplast UL94V-0
Rated current IEC 5,0 A
Rated voltage 125 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Board termination Press-fit Press-fit
Orientation to PCB Vertical Vertical
No of rows 2
Industry standard DSUB
Mounting option DSUB No accessories, Rivet #4-40, Rivet #4-40 + boardlock, Rivet #4-40 + boardlock + jack screw
Color black, blue, white
Plating shell Ni, Sn
Packaging Standard

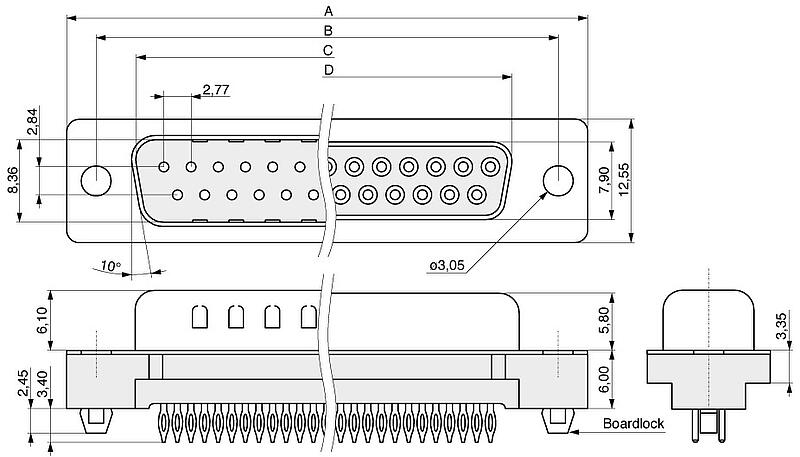

 D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit  596  5 D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit  596  5
PincountABCDE
00930,8124,9916,9216,33-
01539,1433,3225,5024,66-
02553,0447,0438,9638,38-
03769,3263,5055,4254,84-
