596-4

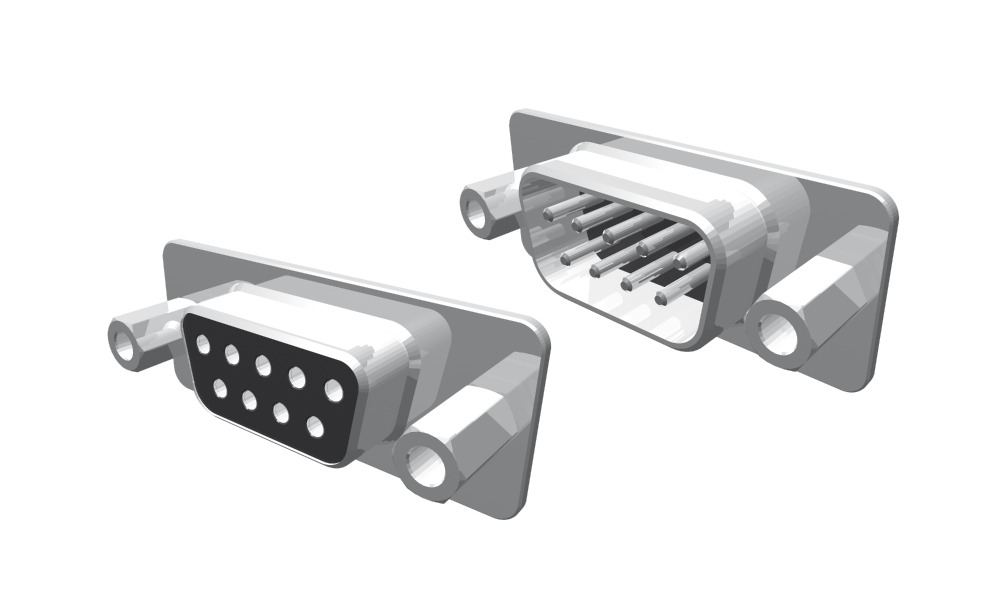

D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit Solder cup 596 4

DSUB, D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit

Solder cup

Pincount	9, 15, 25, 37
Gender	Female, Male
Material contact	Copper alloy
Plating contact	Au, Selective Au
Material insulator	Thermoplast UL94V-0
Rated current IEC	5,0 A
Rated voltage	125 V RMS / V DC
Withstand voltage	500 V RMS for 1 Minute
Operating temperature	-55°C to +85°C
Max. processing temper.	230°C for 10 seconds
No of rows	2
Connection type	Solder cup
Industry standard	DSUB
Mounting option DSUB	Front rivet #4-40; 5,8 mm, Front rivet M3; 5,8 mm, No accessories, Rear rivet #4-40; 2,50 mm ... Rear rivet boardlock #4-40
Color	black, blue, white
Plating shell	Ni, Sn
Packaging	Standard

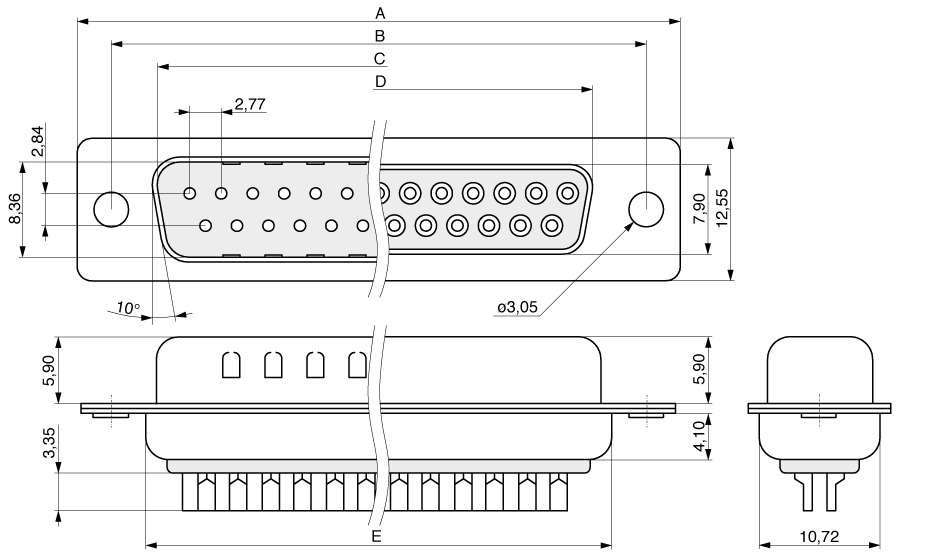

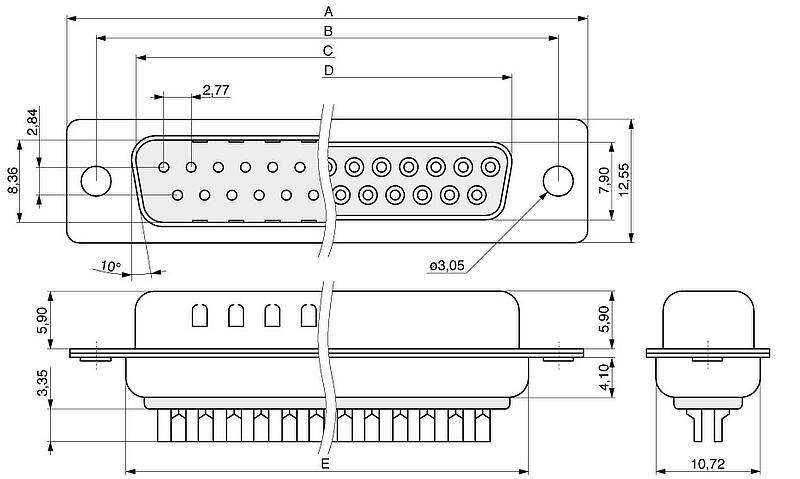

Pincount	A	B	C	D	E
009	30,81	24,99	16,92	16,33	19,20
015	39,14	33,32	25,50	24,66	27,70
025	53,04	47,04	38,96	38,38	41,10
037	69,32	63,50	55,42	54,84	57,30
