  3. D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit Series 596
Order code not found. You may mean this product:
596-3

Raised solder version


Your search was with an old part number. Here is the actual version.
Available variations
Compare product
Mating products
Show matching products

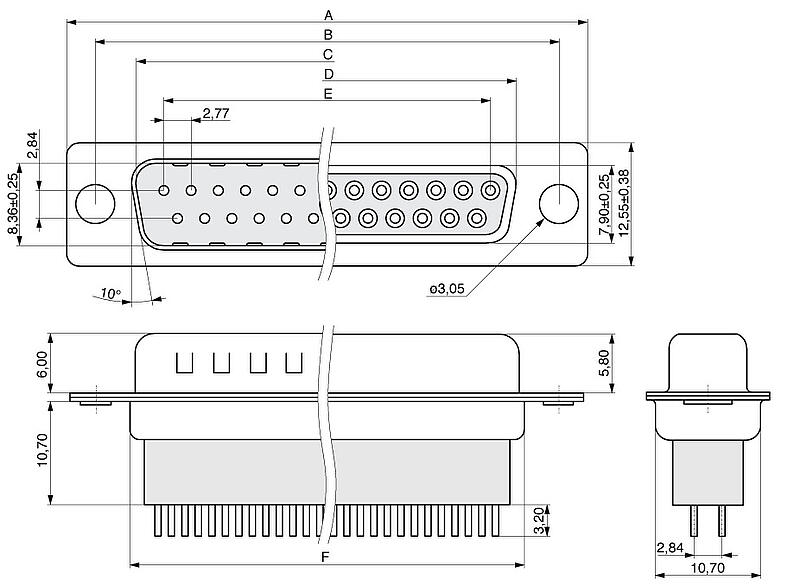

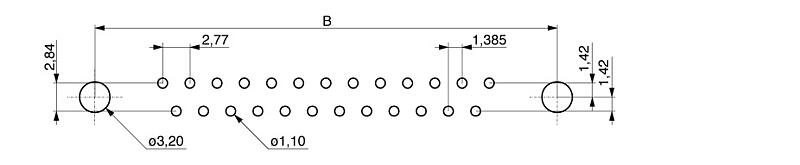

Illustration
Technical data
Moreless
Pincount 9, 15, 25, 37
Gender Female, Male
Material contact Copper alloy
Plating contact Selective Au
Material insulator Thermoplast UL94V-0
Rated current IEC 5,0 A
Rated voltage 125 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Industry standard DSUB
Mounting option DSUB No accessories, Rear rivet #4-40; 4,0 mm, Rear rivet #4-40; 4,00 mm + screw, Rear rivet boardlock 11,10 mm
Color black
Plating shell Ni, Sn
Packaging Standard
Pincount A B C D E
00930,8124,9916,9216,3311,08
01539,1433,3225,5024,6619,39
02553,0447,0438,9638,3833,24
03769,3263,5055,4254,8449,86
Configurate Your Product
Order code
596-3-????-??0?S-BS0
Please finish Product configuration first

Pincount
Gender
Mounting option DSUB
Plating shell
To request list
Please finish Product configuration first

Would you like to request a non-binding offer?
The product was added to the request list. to request list.
+49 (0) 83 62 / 91 56-0 Contact form
