Technical data
MorelessMaterial insulator | Thermoplast UL94V-0 |
Plating contact | Selective Au |
Packaging | Standard |
Plating shell | Ni, Sn |
Material contact | Copper alloy |
Board termination | ![]() |
Rated current | 3,0 A |
Rated voltage | 60 V RMS / V DC |
Withstand voltage | 500 V RMS for 1 Minute |
Operating temperature | -55°C to +85°C |
Max. processing temper. | 230°C for 10 seconds |
Pincount | 15, 26, 44, 62 |
Orientation to PCB | ![]() |
No of rows | 3 |
Industry standard | DSUB |
Mounting option DSUB | Front rivet #4-40; 4,00 mm, No accessories, Rear rivet #4-40; 4,0 mm, Rear rivet #4-40; 4,00 mm + screw ... Rear rivet boardlock 9,60 mm + screw |
Color | black |

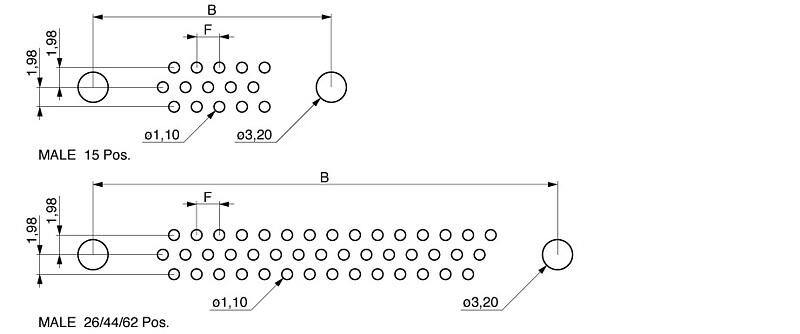

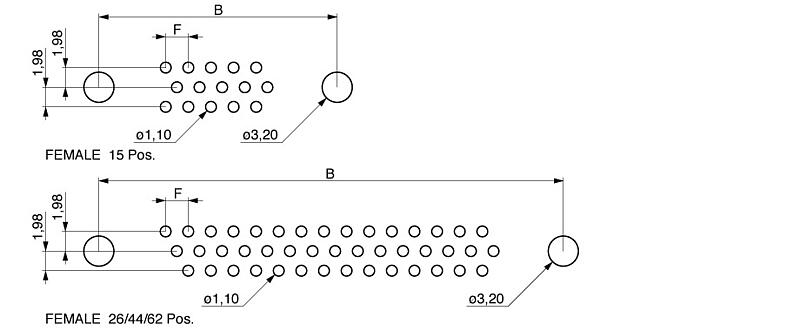

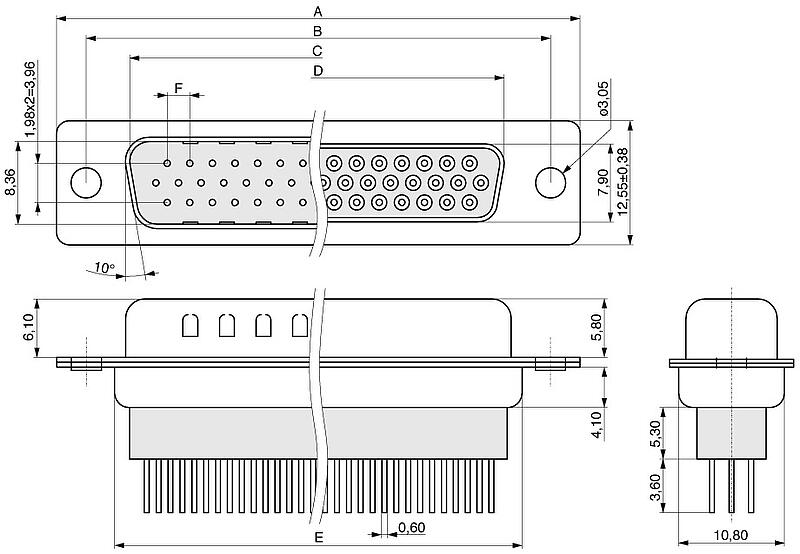

Drawing / Dimensions
MorelessNo of contacts | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|
15 | 30,81 | 24,99 | 16,92 | 16,33 | 19,23 | 2,29 | 7,04 |
26 | 39,14 | 33,32 | 25,50 | 24,66 | 27,56 | 2,29 | 6,88 |
44 | 53,04 | 47,04 | 38,96 | 38,38 | 41,28 | 2,29 | 6,88 |
62 | 69,32 | 63,50 | 55,42 | 54,84 | 57,33 | 2,41 | 7,00 |
15 | 30,81 | 24,99 | 16,92 | 16,33 | 19,23 | 2,29 | 7,04 |
26 | 39,14 | 33,32 | 25,50 | 24,66 | 27,56 | 2,29 | 6,88 |
44 | 53,04 | 47,04 | 38,96 | 38,38 | 41,28 | 2,29 | 6,88 |
62 | 69,32 | 63,50 | 55,42 | 54,84 | 57,33 | 2,41 | 7,00 |
