Order code not found. You may mean this product:
598-3

D-SUB High Density, Straight Solder cup 598 3

DSUB, D-SUB High Density, Straight

Solder cup

Available variations
Compare product

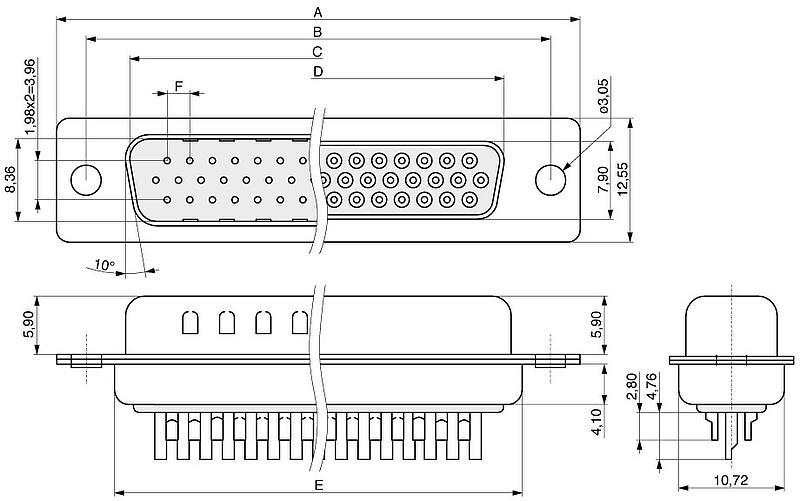

Illustration D-SUB High Density, Straight Solder cup  598  3
Technical data
Moreless
Pincount 15, 26, 44, 62
Gender Female, Male
Material contact Copper alloy
Plating contact Selective Au
Material insulator Thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 60 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
No of rows 3
Connection type Solder cup
Industry standard DSUB
Mounting option DSUB Front rivet #4-40; 5,8 mm, Front rivet M3; 5,8 mm, No accessories, Rear rivet #4-40; 4,00 mm + screw ... Rear rivet boardlock #4-40
Color black, blue, white
Plating shell Ni, Sn
Packaging Standard
 D-SUB High Density, Straight Solder cup  598  3

Pincount
015
026
044
062
