Technical data
Moreless| Pincount | 15, 26, 44, 62 |
| Gender | Female, Male |
| Material contact | Copper alloy |
| Plating contact | Selective Au |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 3,0 A |
| Rated voltage | 60 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -55°C to +85°C |
| Max. processing temper. | 230°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 3 |
| Industry standard | DSUB |
| Mounting option DSUB | Front rivet #4-40; 4,00 mm, Front rivet M3; 4,0 mm, Front rivet M3; 5,8 mm, No accessories ... Rear rivet boardlock #4-40 + screw |
| Color | black, blue, white |
| Plating shell | Ni, Sn |
| Packaging | Standard |

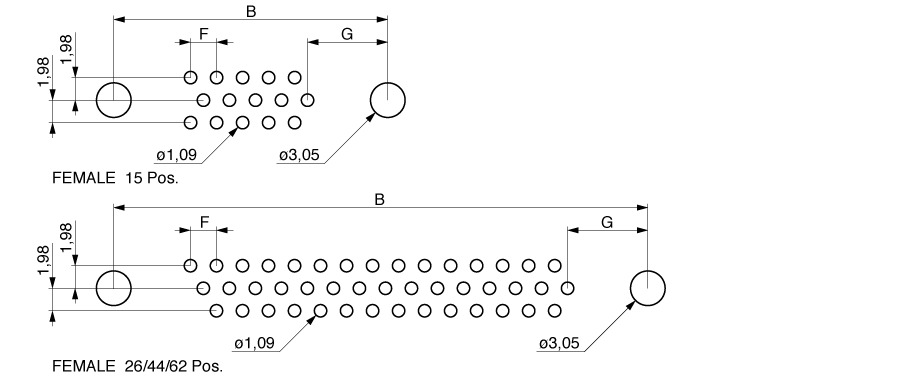

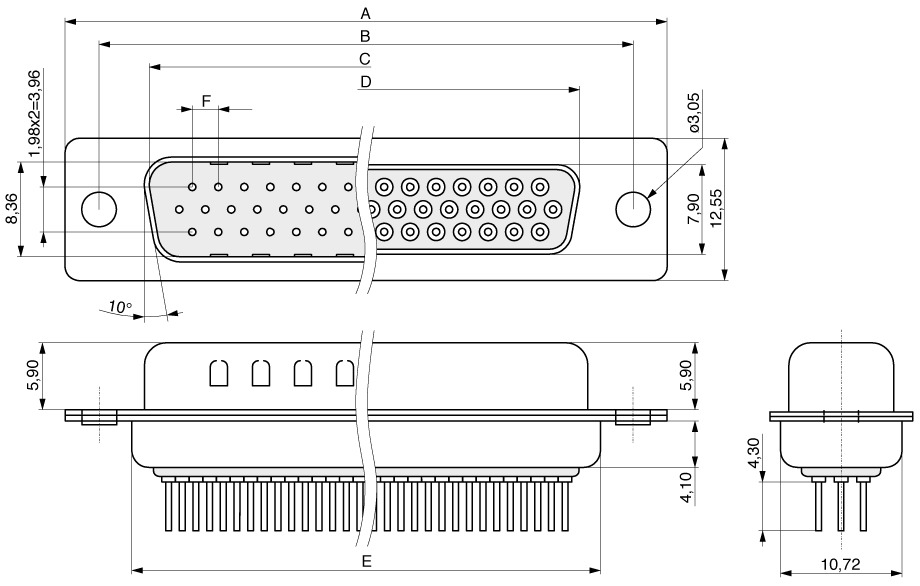

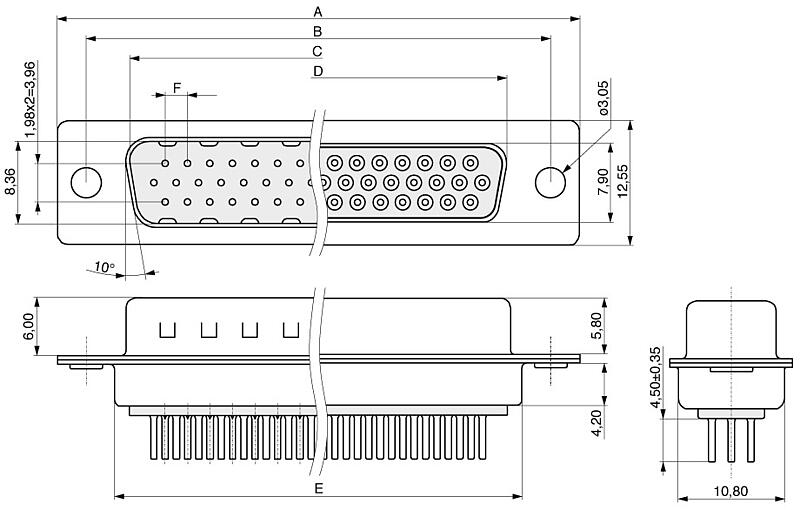

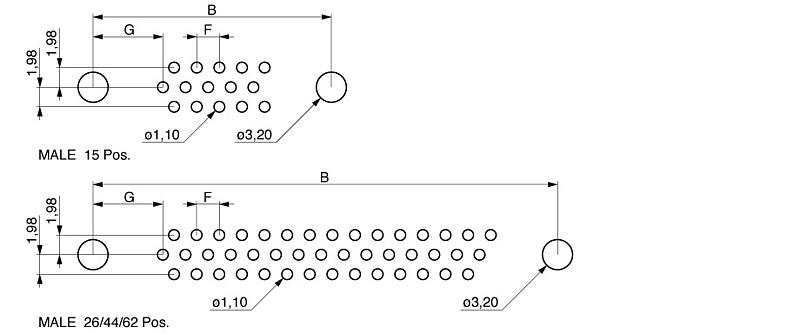

Drawing / Dimensions
Moreless
| Pincount | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 015 | 30,81 | 24,99 | 16,92 | 16,33 | 19,15 | 2,29 | 7,04 |
| 026 | 39,14 | 33,32 | 25,25 | 24,75 | 27,65 | 2,29 | 6,88 |
| 044 | 53,05 | 47,04 | 38,96 | 38,33 | 41,10 | 2,29 | 6,88 |
| 062 | 69,32 | 63,50 | 55,42 | 54,75 | 57,33 | 2,41 | 7,00 |
