Order code not found. You may mean this product:
599-3

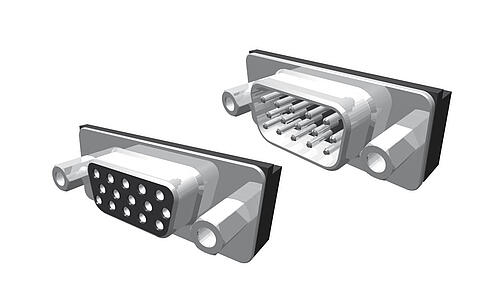

D-SUB High Density, Right Angled Series 599 Variant 3

DSUB, D-SUB High Density, Right Angled

D-SUB high density right angled version. A wide range of mounting accessories is available.

Available variations
Compare product
Technical data
Moreless
Material insulator Thermoplast UL94V-0
Plating contact Au, Selective Au
Plating shell Ni
Packaging Standard
Board terminationThrough hole Through hole
Material contact Copper alloy
Rated current 3,0 A
Rated voltage 60 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Pincount 15, 26, 44, 62
Orientation to PCBParallel Parallel
No of rows 3
Industry standard DSUB
Mounting option DSUB Jack screw inserted, Rivet, Rivet + jack screw 11,80 mm attached, Rivet + jack screw inserted
Color black, blue
Pincount
015
026
044
062
