Order code not found. You may mean this product:
599-1

D-SUB High Density, Right Angled 599 1

DSUB, D-SUB High Density, Right Angled

SMD

Available variations
Compare product

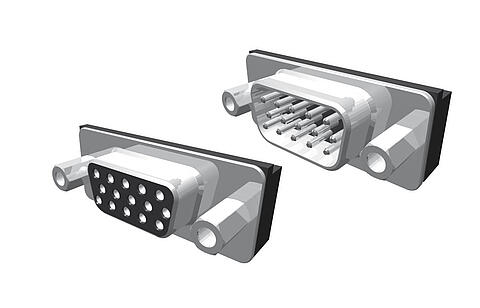

Illustration D-SUB High Density, Right Angled  599  1
Technical data
Moreless
Pincount 15
Gender Female
Material contact Copper alloy
Plating contact Selective Au
Material insulator Thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 60 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 3
Industry standard DSUB
Mounting option DSUB Rivet, Rivet + jack screw 10,00 mm attached, Rivet + jack screw inserted
Color black, blue, white
Plating shell Ni
Packaging Standard
 D-SUB High Density, Right Angled  599  1 D-SUB High Density, Right Angled  599  1
PolzahlABCDEF
1530,8124,9916,9216,332,29-
