Order code not found. You may mean this product:
601-2

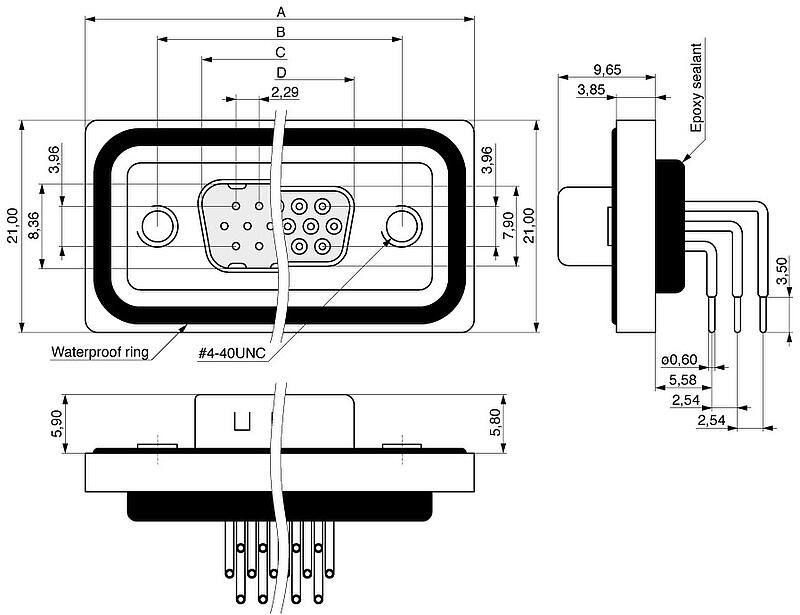

D-SUB High Density IP-67 Series 601 Variant 2

DSUB, D-SUB High Density IP-67

D-SUB high density for PCB and wire termination according to IP-67.

Available variations
Compare product
Technical data
Moreless
Pincount 15, 26, 44
Material contact Copper alloy
Plating contact Au
Material insulator Thermoplast UL94V-0
Rated current 3,0 A
Rated voltage 60 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 3
Industry standard DSUB
Mounting option DSUB Rivet #4-40, Rivet + jack screw attached, Rivet + jack screw inserted
Color black
Plating shell Ni, Sn
Packaging Standard
Pincount
015
026
044
