Order code not found. You may mean this product:
601-1

D-SUB High Density IP-67 601 1

DSUB, D-SUB High Density IP-67

Through-hole straight

Available variations
Compare product
Mating products
Show matching products

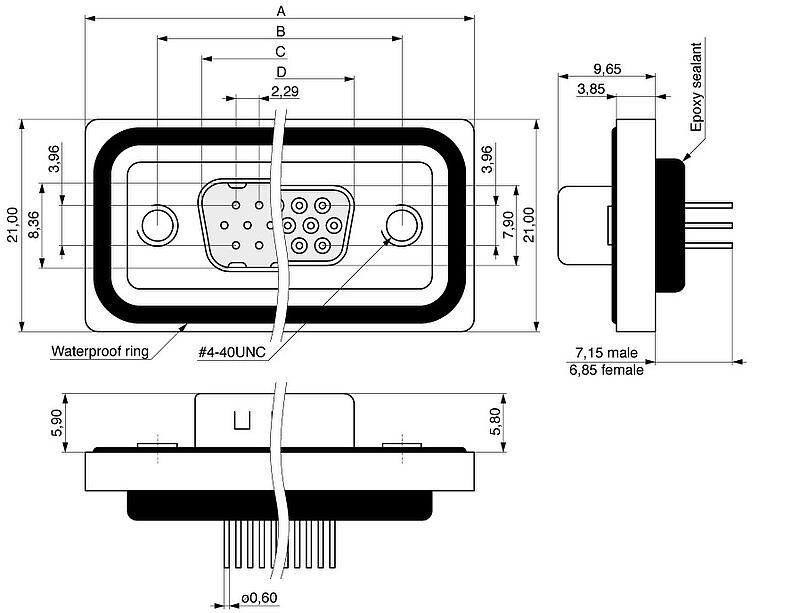

Illustration D-SUB High Density IP-67 601 1
Technical data
Moreless
Pincount 15
Gender Female, Male
Material contact Copper alloy
Plating contact Au
Material insulator Thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 60 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 3
Industry standard DSUB
Mounting option DSUB Rivet #4-40, Rivet + jack screw attached, Rivet + jack screw inserted
Color black
Plating shell Ni, Sn
Packaging Standard

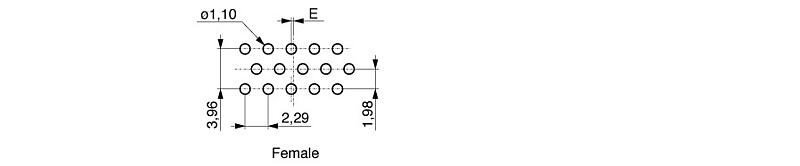

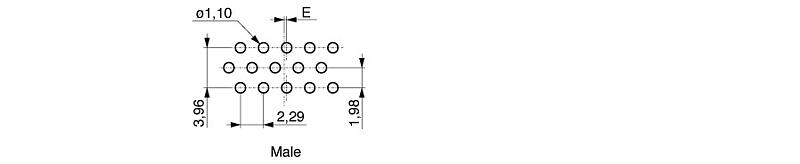

D-SUB High Density IP-67 601 1 1 D-SUB High Density IP-67 601 1 2 D-SUB High Density IP-67 601 1
PolzahlABCD
1539,2024,8016,9016,30
Configurate Your Product
Order code
601-1-015?-??0?F-BS0
Please finish Product configuration first

Gender
Mounting option DSUB
Plating shell
