Order code not found. You may mean this product:
384-1

Socket Connector 384 1

DIN 41622, Socket Connector

Double row version

Available variations
Compare product
Mating products
Show matching products
Accessory
5 accessories

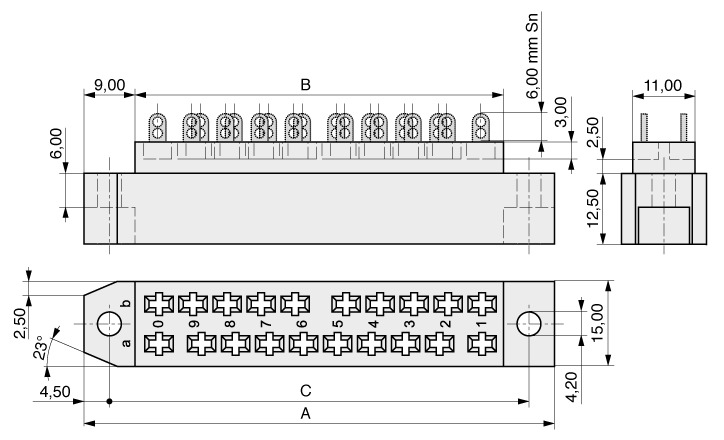

Illustration Socket Connector 384 1
Technical data
Moreless
Pincount 8, 12, 16, 20
Gender Female
Material contact Copper alloy
Plating contact Ag 4 µ, Au 0,8 µ
Material insulator Thermoplast UL94V-0
Rated current IEC 10,0 A
Rated voltage 250 V RMS / V DC, 750 V RMS / V DC
Withstand voltage 875 V RMS for 1 Minute
Operating temperature -20°C to +85°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel, Vertical
No of rows 2
Industry standard DIN 41622
Leading contacts ---
Packaging Standard
Socket Connector 384 1 1 Socket Connector 384 1 2 Socket Connector 384 1 3 Socket Connector 384 1 4 Socket Connector 384 1 5 Socket Connector 384 1
PincountA (Length)B (Mating)CDD
00847,0029,0038,0030,0030,00
01259,0041,0050,0042,0042,00
01671,0053,0062,0054,0054,00
02083,0065,0074,0066,0066,00
Configurate Your Product
Order code
384-1-???-??N-ZS
Please finish Product configuration first

Pincount
Contact type DIN 41622/41618
Plating contact
