Technical data
Moreless| Pincount | 20 |
| Gender | Male |
| Material contact | Copper alloy |
| Plating contact | Ag 4 µ, Au 0,8 µ |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 10,0 A |
| Rated voltage | 750 V RMS / V DC |
| Withstand voltage | 1750 V RMS for 1 Minute |
| Operating temperature | -20°C to +85°C |
| Max. processing temper. | 230°C for 5 seconds |
| Board termination |
Through hole
|
| Orientation to PCB | Parallel, Vertical |
| No of rows | 2 |
| Industry standard | DIN 41622 |
| Leading contacts | --- |
| Packaging | Standard |

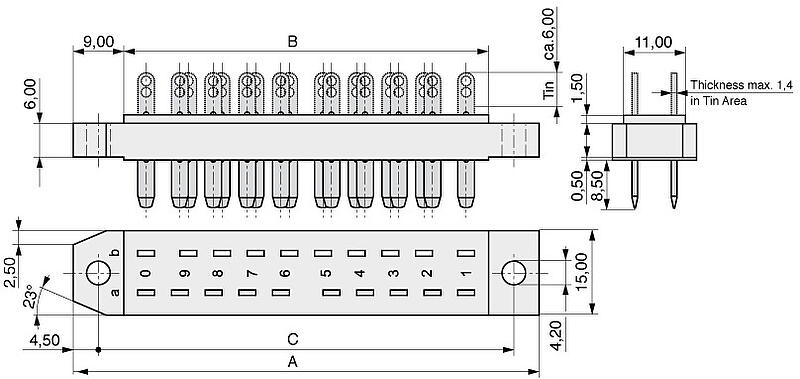

Drawing / Dimensions
Moreless
| Pincount | A (Length) | B (Mating) | C | D | E |
|---|---|---|---|---|---|
| 020 | 83,00 | 65,00 | 74,00 | 74,00 | 66,00 |
