Order code not found. You may mean this product:
416-4

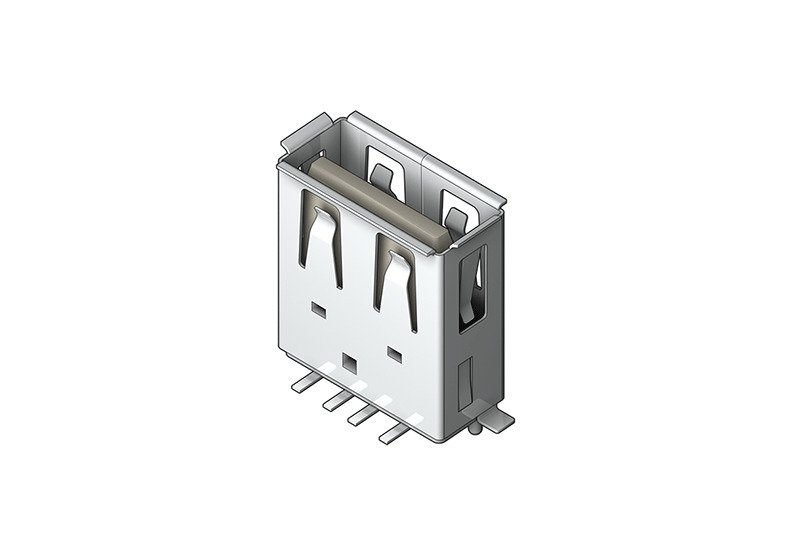

USB Type A Series 416 Variant 4

USB, USB Type A

USB Type A female connectors in vertical or horizontal orientation. Available in through hole or SMD version.

Available variations
Compare product
Technical data
Moreless
Material insulator Thermoplast UL94V-0
Plating clip Selective Au
Packaging Reel, Standard
Board terminationSMD Gull Wing SMD Gull Wing
Material contact Phosphor bronze
Rated current 1,0 A
Rated voltage 30 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Pincount 4
Orientation to PCBVertical Vertical
Cap With kapton tape, Without cap
Industry standard USB A
