Order code not found. You may mean this product:
369-3

Female Header Micro Match 1,27 mm 369-3

Socket connectors, Female Header Micro Match 1,27 mm

Horizontal version

Available variations
Compare product
Illustration Female Header Micro Match 1,27 mm  369-3
Technical data
Moreless
Pitch (mm) 1,27
Pincount 4, 6, 8, 10 ... 26
Gender Female
Polarising yes
Locking No
Material contact Phosphor bronze
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 230 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 2
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Reel, Tube

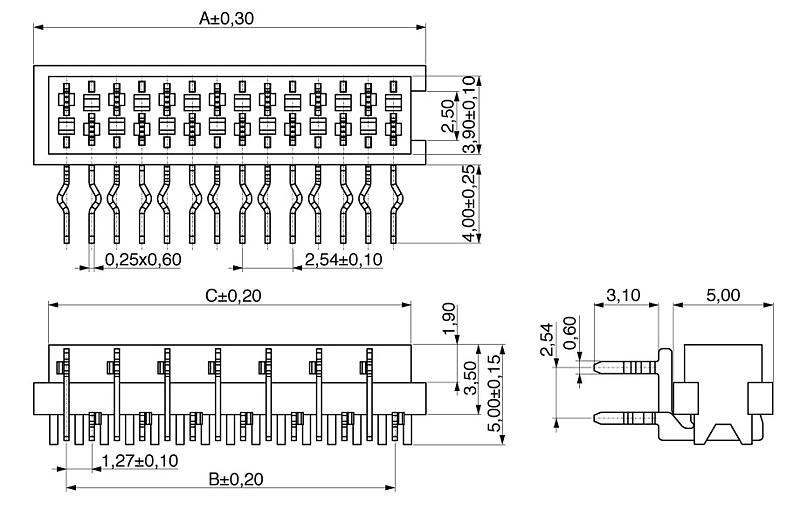

 Female Header Micro Match 1,27 mm  369-3 Female Header Micro Match 1,27 mm  369-3
Pincount A B C
0047,003,815,60
0069,546,358,14
00812,088,8910,68
01014,6211,4313,22
01217,1613,9715,76
01419,7016,5118,30
01622,2419,0520,84
01824,7821,5923,38
02027,3224,1325,92
02229,8626,6728,46
02432,4029,2131,00
02634,9431,7533,54
