  1. Products
  2. Socket connectors
  3. Female Header Micro Match 1,27 mm Series 369
  4. Female Header Micro Match 1,27 mm 369 2
Order code not found. You may mean this product:
369-2

Female Header Micro Match 1,27 mm 369 2

Socket connectors, Female Header Micro Match 1,27 mm

Vertical version with locking

Available variations
Compare product
Mating products
Show matching products

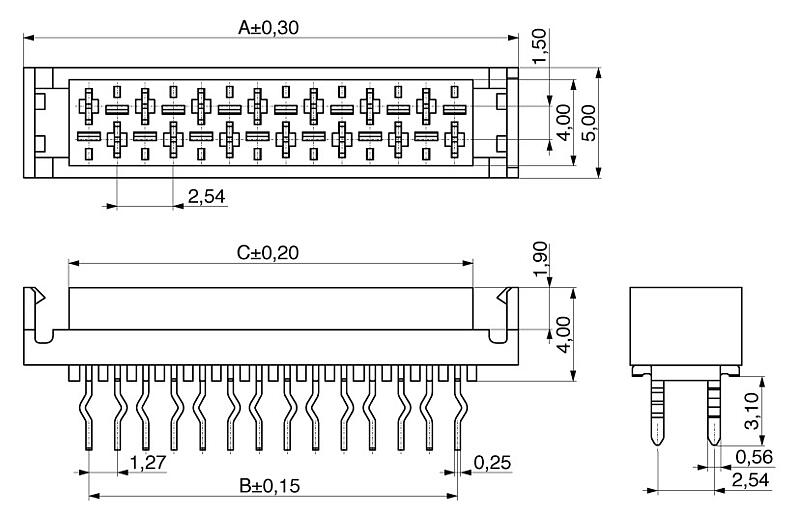

Illustration Female Header Micro Match 1,27 mm 369 2
Technical data
Moreless
Pitch (mm) 1,27
Pincount 4, 6, 8, 10 ... 26
Gender Female
Polarising yes
Material contact Phosphor bronze
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 230 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Reel, Tube
Female Header Micro Match 1,27 mm 369 2 Female Header Micro Match 1,27 mm 369 2
PincountABC
0049,683,815,60
00612,226,358,14
00814,768,8910,68
01017,3011,4313,22
01219,8413,9715,76
01422,3816,5118,30
01624,9219,0520,84
01827,4621,5923,38
02030,0024,1325,92
02232,5426,6728,46
02435,0829,2131,00
02637,6231,7533,54
Configurate Your Product
Order code
369-2-???-0-NTX-K?0
Please finish Product configuration first

Pincount
Packaging
