725-4

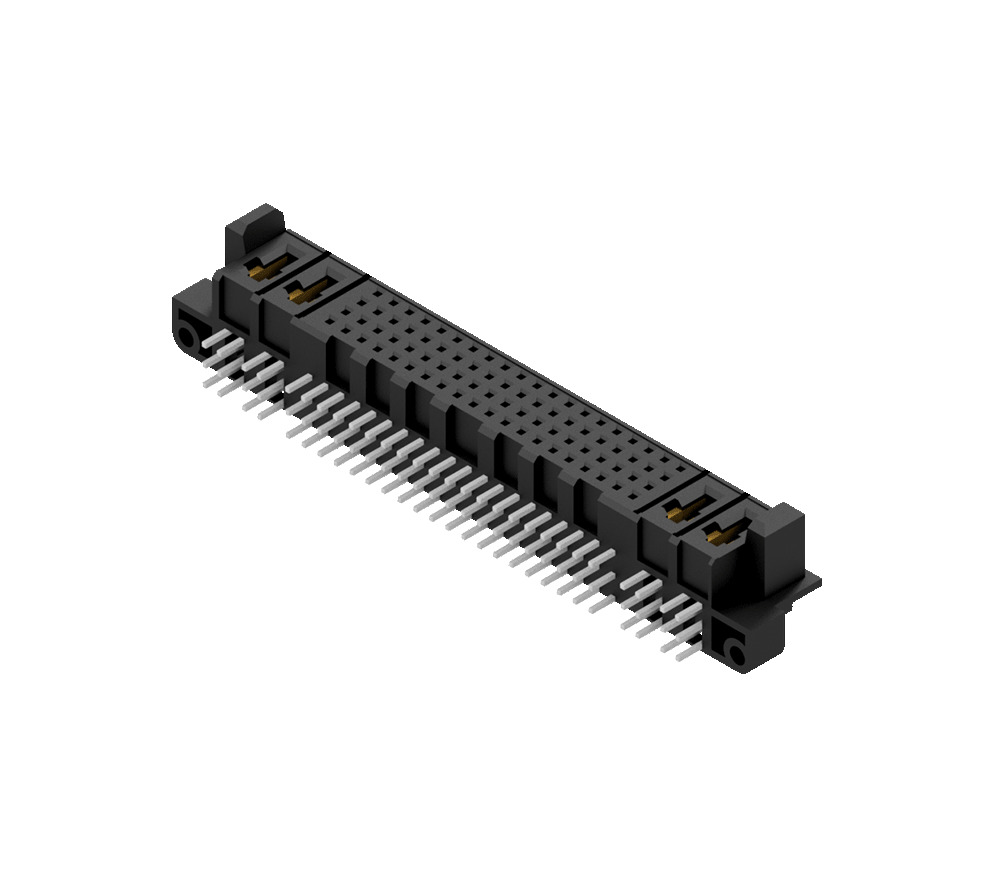

Angled, power and signal contacts.

Pitch (mm)	5,00
Pincount	2 power / 24 signal, 2 power / 80 signal, 4 power / 24 signal, 4 power / 80 signal
Gender	Female
Material contact	Copper alloy
Plating contact	Au, Power: Sn / Signal: Au, Sn
Material insulator	High temp. thermoplast UL94V-0
Rated current IEC	Power: 24,7 A Signal: 1,0 A
Rated voltage	Power: 600 V AC / 848 V DC Signal: 300 V AC / 424 V DC
Operating temperature	-55°C to +105°C
Max. processing temper.	260°C for 10 seconds

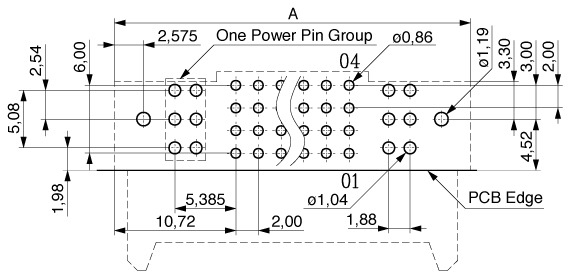

Board termination	Through hole
Orientation to PCB	Parallel
No of rows	1
Positioning peg	With clip
Contact style	Die cut
Packaging	Tray, Tube

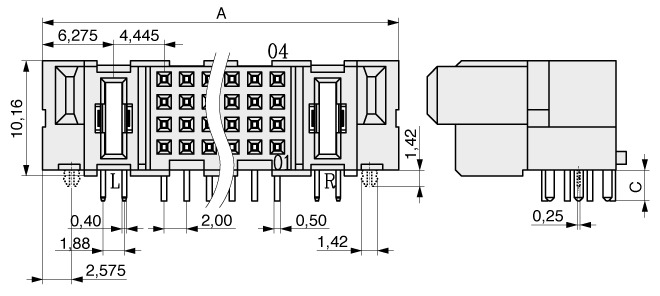

C	2,72, 3,52, 4,32

Configurate Your Product

Order code

725-4-???-2-N?X-R?0-????
