725-2

Hochstromsteckverbinder und Mischleisten für Power und Signal 725 2

Socket connectors, Hochstromsteckverbinder und Mischleisten für Power und Signal

Angled, power contacts only.

Available variations
Compare product

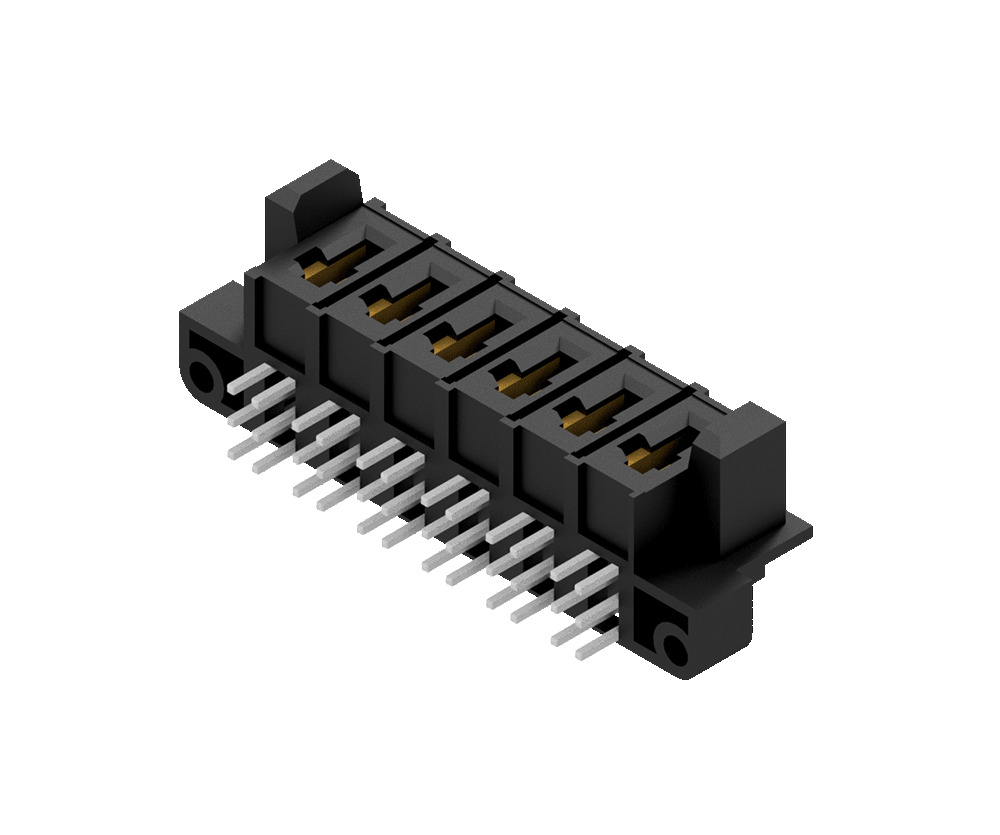

Illustration Hochstromsteckverbinder und Mischleisten für Power und Signal  725  2
Technical data
Moreless
Pitch (mm) 5,00
Pincount 2, 3, 4, 6, 8
Gender Female
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 24,7 A
Rated voltage 600 V RMS / V DC
Operating temperature -55°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Positioning peg With clip
Contact style Die cut
Packaging Tray, Tube
C 2,72, 3,52, 4,32
