Order code not found. You may mean this product:
087-2

Pin Header 2,54 mm 087 2

Pin headers, Pin Header 2,54 mm

Double row header

Available variations
Compare product
Mating products
Show matching products

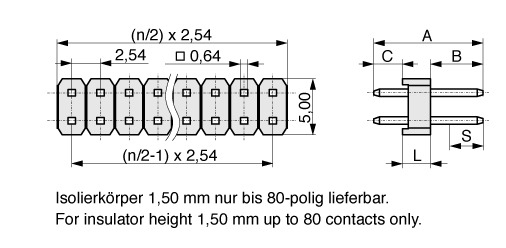

Illustration Pin Header 2,54 mm 087 2
Technical data
Moreless
Pitch (mm) 2,54
Pincount 2, 4, 6, 8 ... 100
Gender Male
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Row distance (mm) 2,54
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Standard
A (Length) 10,00, 10,20, 10,60, 10,80 ... 24,90
B (Mating) 10,7, 12, 12,1, 14 ... 9,8
C 2,50, 3,30
L 1,50, 1,70, 2,50
Pin Header 2,54 mm 087 2 Pin Header 2,54 mm 087 2
A (Length) B (Mating) C L
10,205,202,502,50
11,305,503,302,50
10,805,802,502,50
12,606,803,302,50
14,008,203,302,50
14,809,003,302,50
16,5010,703,302,50
17,9012,103,302,50
19,8014,003,302,50
21,6015,803,302,50
22,8017,003,302,50
24,9019,103,302,50
10,006,002,501,50
10,606,602,501,50
11,106,303,301,50
13,809,003,301,50
14,309,503,301,50
14,609,803,301,50
16,8012,003,301,50
19,6014,803,301,50
21,4016,603,301,50
22,6017,803,301,50
24,7019,903,301,50
Configurate Your Product
Order code
087-2-???-0-?-XS0-????
Please finish Product configuration first

Pincount
Plating contact
A (Length)
To request list
Please finish Product configuration first
