  1. Products
  2. Pin headers
  3. Pin Header 2,54 mm Series 087
Order code not found. You may mean this product:
087-1

Single row header


Your search was with an old part number. Here is the actual version.
Available variations
Compare product
Mating products
Show matching products

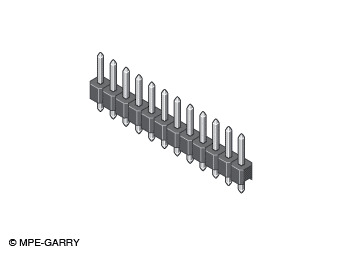

Illustration
Technical data
Moreless
Pitch (mm) 2,54
Pincount 1, 2, 3, 4 ... 50
Gender Male
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 1
Contact style Die cut
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
A 10,00, 10,20, 10,60, 10,80 ... 24,90
B 10,7, 12, 12,1, 14 ... 9,8
C 2,50, 3,30
L 1,50, 1,70, 2,50
A B C L
10,205,202,502,50
11,305,503,302,50
10,805,802,502,50
12,606,803,302,50
14,008,203,302,50
14,809,003,302,50
16,5010,703,302,50
17,7011,903,302,50
17,9012,103,302,50
19,8014,003,302,50
21,6015,803,302,50
22,8017,003,302,50
24,9019,103,302,50
10,006,002,501,50
10,606,602,501,50
11,106,303,301,50
13,809,003,301,50
14,309,503,301,50
14,609,803,301,50
16,8012,003,301,50
19,6014,803,301,50
21,4016,603,301,50
22,6017,803,301,50
24,7019,903,301,50
Configurate Your Product
Order code
087-1-???-0-?-XS0-????
Please finish Product configuration first

Pincount
Plating contact
A
