Order code not found. You may mean this product:
42R03-7

K+B Device plug solder termination 42R03 7

In-/Outlets according to IEC 60320, K+B Device plug

Hole spacing 36 mm for countersunk screws.

Available variations
Compare product

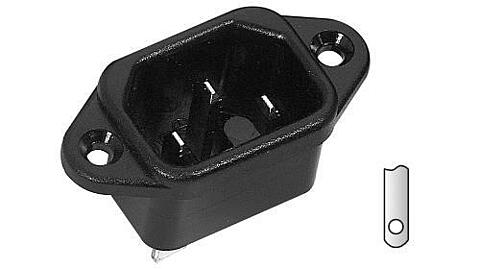

Illustration K+B Device plug solder termination 42R03 7
Technical data
Moreless
Rated current IEC 10,0 A
Rated current UL 15,0 A
Connection type solder termination
Design Inlet Inlet
Switch Without
Voltage selector Without
Approvals
CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR
Color black
Contact arrangement C14 (2), C16 (1), C16A (5), C18 (4)
Connection Type solder connection 1 (1), solder connection 2 (2), solder connection 3 (3), solder connection 4 (4)
K+B Device plug solder termination 42R03 7 K+B Device plug solder termination 42R03 7
Configurate Your Product
Order code
42R0371??
Please finish Product configuration first

Connection Type
Contact arrangement
