42R03-6

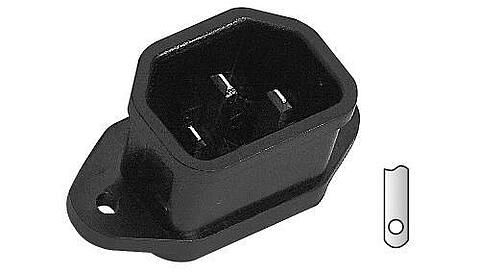

K+B Device plug solder termination Series 42R03 Variant 6

In-/Outlets according to IEC 60320, K+B Device plug

Power inlets and outlets according IEC 60320. All common variations for different current loads and terminations.

Compare product
Technical data
Moreless
Rated current 10,0 A
Cable termination solder termination
Inlet / Outlet Inlet Inlet
Approvals UL, VDE, cUR   UL, VDE, cUR   UL, VDE, cUR
Mounting part chassis
Fastening Base flange 5, Base flange 6
Color black
Contact arrangement C16, C16A, C18

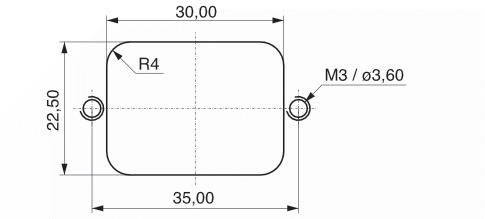

Snap-In Dimension (A) 1,00, 1,50, 2,00, 2,50 ... V01
Connection Type solder connection 1, solder connection 2, solder connection 3, solder connection 4
