44R01-3

K+B Combination plug Plug-in connection solder termination Series 44R01 Variant 3

In-/Outlets according to IEC 60320, K+B Combination plug

Power inlets and outlets according IEC 60320. All common variations for different current loads and terminations.

Rated current	10,0 A
Cable termination	Plug-in connection, solder termination
Inlet / Outlet	Combi/Multi
Inlet termination	Quick connect 4,8, Quick connect 6,3, Solder lug 1,7x3,0, Solder lug 2x ø 1,7 ... Solder lug ø 1,7
No of fuses	1
Switch	yes
Busbar	Bridge + fused outlet, L, N and PE with busbar, Without busbar
Outlet termination	None, Quick connect 4,8, Solder lug 1,7x3,0, Solder lug 2x ø 1,7 ... Solder lug ø 1,7
Mounting part	chassis
Color	black, brown, grey, white
Contact arrangement	Normblatt F

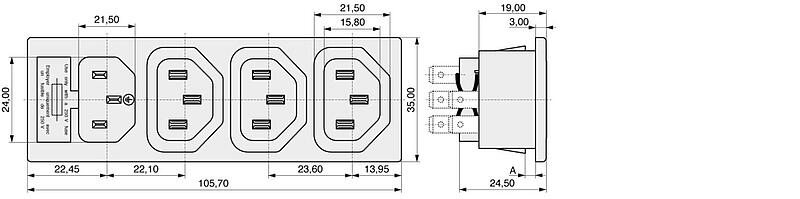

Snap-In Dimension (A)	1,00, 1,50, 2,00, 2,50
Connection Type	Plug-in connection 4,8, solder connection 2,8
