Order code not found. You may mean this product:
44R01-2

K+B Combination plug Plug-in connection solder termination 44R01 2

In-/Outlets according to IEC 60320, K+B Combination plug

Available variations
Compare product

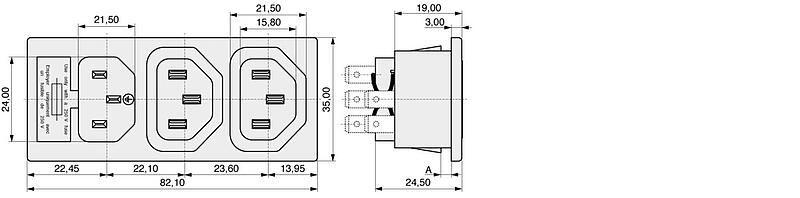

Illustration K+B Combination plug Plug-in connection
solder termination  44R01  2
Technical data
Moreless
Rated current IEC ohne VDE
Rated current UL 10,0 A
Connection type Plug-in connection, solder termination
Design Combi/Multi Combi/Multi
Inlet termination Quick connect 4,8, Quick connect 6,3, Solder lug 1,7x3,0, Solder lug 2x ø 1,7 ... Solder lug ø 1,7
No of fuses 1
Color black
Contact arrangement Normblatt F Normblatt F
Snap-In Dimension (A) 1,00, 1,50, 2,00, 2,50, Andere Werte auf Anfrage
Connection Type Plug-in connection 4,8 (1), Plug-in connection 6,3 (5), solder connection 2,8 (2)
Fuse protection Plug and socket fused, Plug and socket fused with solder connection/socket, Plug fused, Plug fused with solder connection/socket
