Technical data
Moreless| Pitch (mm) | 1,778 Shrink dip |
| Mating pin size (range) |
ø 0,40-0,56 ☐ 0,25x0,45 |
| Pincount | 16, 18, 20, 22 ... 68 |
| Gender | Female |
| Material contact | Copper alloy |
| Plating contact | Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 3,0 A |
| Rated voltage | 150 V RMS / V DC |
| Withstand voltage | 1000 V RMS for 1 Minute |
| Operating temperature | -55°C to +125°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 2 |
| Row distance (code) | 300 mil, 400 mil, 600 mil, 700 mil |
| Contact type |
Standard Shrink
|
| Plating clip | Au, Au 0,75 µ |
| Row distance (mm) | 10,16, 15,24, 19,05, 7,62 |
| Material clip | Berylium Copper |
| Socket layout |
DIL (Dual-in-line)
|

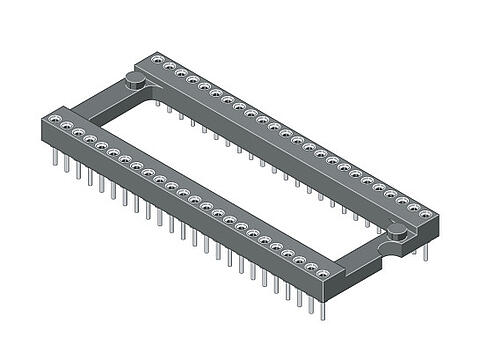

| Type | IC Socket |
| Packaging | Standard |
Drawing / Dimensions
Moreless
| Pincount | Row distance (code) | Row distance (mm) | A | B | C |
|---|---|---|---|---|---|
| 016 | 300 mil | 7,62 | 14,60 | 10,10 | 4,40 |
| 020 | 600 mil | 15,24 | 18,10 | 17,64 | 10,25 |
| 024 | 600 mil | 15,24 | 21,70 | 17,64 | 10,25 |
| 028 | 400 mil | 10,16 | 25,20 | 12,70 | 6,20 |
| 028 | 600 mil | 15,24 | 25,20 | 17,64 | 10,25 |
| 030 | 400 mil | 10,16 | 27,00 | 12,70 | 6,20 |
| 032 | 400 mil | 10,16 | 28,80 | 12,70 | 6,20 |
| 040 | 600 mil | 15,24 | 35,80 | 17,64 | 10,25 |
| 042 | 600 mil | 15,24 | 37,70 | 17,64 | 10,25 |
| 048 | 400 mil | 10,16 | 43,10 | 12,70 | 6,20 |
| 048 | 600 mil | 15,24 | 43,10 | 17,64 | 10,25 |
| 052 | 600 mil | 15,24 | 46,70 | 17,64 | 10,25 |
| 056 | 600 mil | 15,24 | 50,20 | 17,64 | 10,25 |
| 064 | 600 mil | 15,24 | 57,30 | 17,64 | 10,25 |
| 068 | 600 mil | 15,24 | 60,90 | 17,64 | 10,25 |
| 064 | 750 mil | 19,05 | 57,30 | 21,50 | 14,25 |
