Order code not found. You may mean this product:
600-2

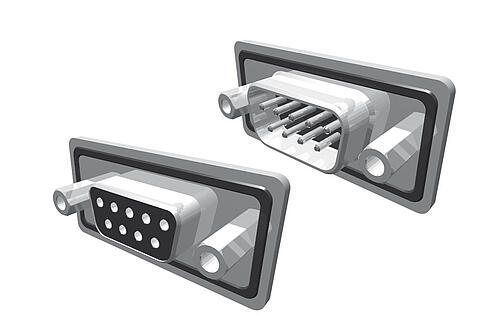

D-SUB IP-67 Series 600 Variant 2

DSUB, D-SUB IP-67

D-SUB for PCB and wire termination according to IP-67.

Available variations
Compare product
Mating products
Show matching products
Technical data
Moreless
Material insulator Thermoplast UL94V-0
Plating contact Au
Plating shell Ni, Sn
Packaging Standard
Board terminationThrough hole Through hole
Material contact Copper alloy
Rated current 5,0 A
Rated voltage 125 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Pincount 9, 15, 25
Orientation to PCBParallel Parallel
No of rows 2
Industry standard DSUB
Mounting option DSUB Rivet #4-40, Rivet + jack screw attached, Rivet + jack screw inserted
Color black

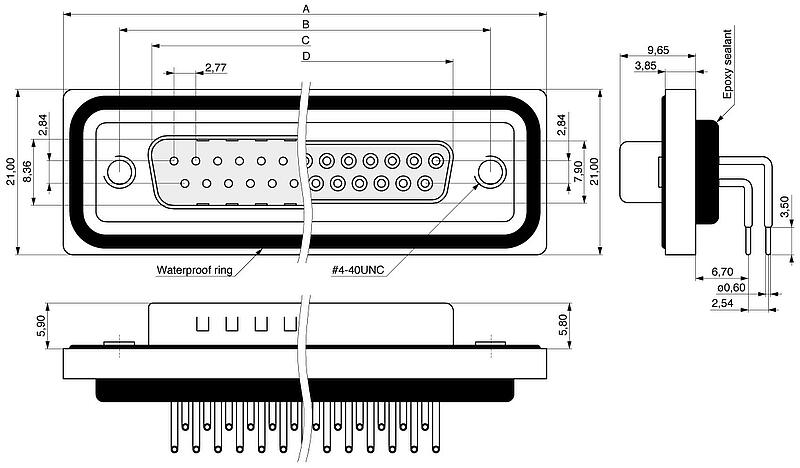

No of contactsABCD
939,4024,9916,9216,33
1547,7033,3025,2524,66
2564,5047,0438,9638,38
939,4024,9916,9216,33
1547,7033,3025,2524,66
2564,5047,0438,9638,38
Configurate Your Product
Order code
600-2-????-??0?F-BS0
Please finish Product configuration first

Pincount
Gender
Mounting option DSUB
Plating shell
