Technical data
Moreless| Pincount | 9, 15, 25 |
| Gender | Female, Male |
| Material contact | Copper alloy |
| Plating contact | Au |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 5,0 A |
| Rated voltage | 125 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -55°C to +85°C |
| Max. processing temper. | 230°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 2 |
| Industry standard | DSUB |
| Mounting option DSUB | Rivet #4-40, Rivet + jack screw attached, Rivet + jack screw inserted |
| Color | black |
| Plating shell | Ni, Sn |
| Packaging | Standard |

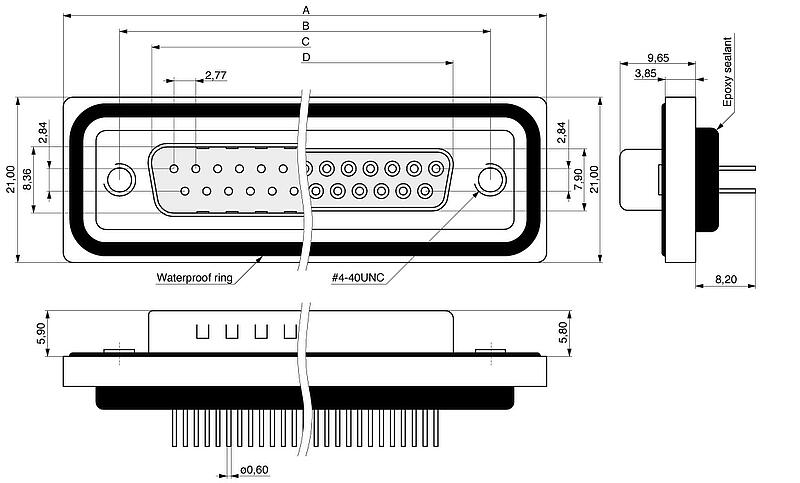

Drawing / Dimensions
Moreless
| Pincount | A | B | C | D |
|---|---|---|---|---|
| 009 | 39,40 | 24,99 | 16,92 | 16,33 |
| 015 | 47,70 | 33,32 | 25,25 | 24,66 |
| 025 | 64,50 | 47,04 | 38,96 | 38,38 |
