Technical data
Moreless| Pitch (mm) | 1,27 |
| Mating pin size (range) | ☐ 0,40 |
| Pincount | 6, 8, 10, 12 ... 50 |
| Gender | Female |
| Polarising | yes |
| Material contact | Phosphor bronze |
| Plating contact | Au |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 1,0 A |
| Rated voltage | 100 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| No of rows | 2 |
| Cap | With cap, With kapton tape, Without cap |
| Connection type | IDC |
| AWG | 30 |
| Row distance (mm) | 1,27 |
| Packaging | Standard |

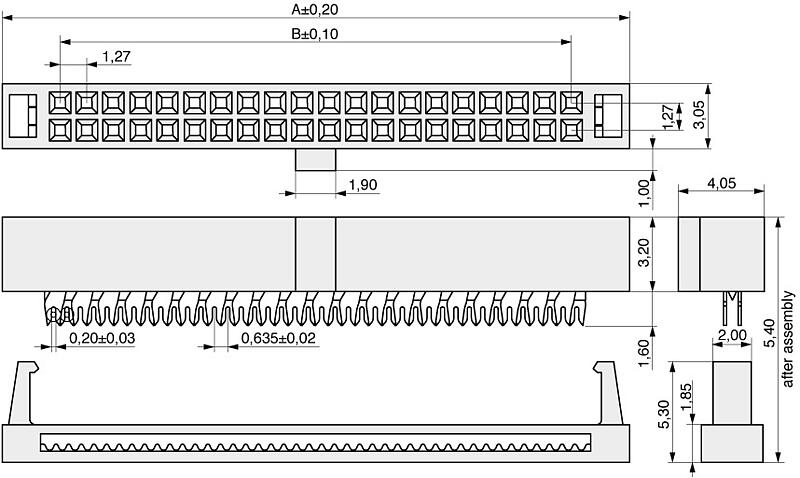

Drawing / Dimensions
Moreless
| Pincount | A | B |
|---|---|---|
| 006 | 8,00 | 2,54 |
| 008 | 9,27 | 3,81 |
| 010 | 10,54 | 5,08 |
| 012 | 11,81 | 6,35 |
| 014 | 13,08 | 7,62 |
| 016 | 14,35 | 8,89 |
| 020 | 16,89 | 11,43 |
| 024 | 19,43 | 13,97 |
| 026 | 20,70 | 15,24 |
| 030 | 23,24 | 17,78 |
| 034 | 25,78 | 20,32 |
| 040 | 29,59 | 24,13 |
| 044 | 32,13 | 26,67 |
| 050 | 35,94 | 30,48 |
