Order code not found. You may mean this product:
576-2

Crimp Housing for Pin Contacts 4,20 mm Crimp 576 2

Wire to Board Connector, Crimp Housing for Pin Contacts 4,20 mm

Double row.

Available variations
Compare product
Additional variants
Important notice: This product requires other products.
Show 3 required products

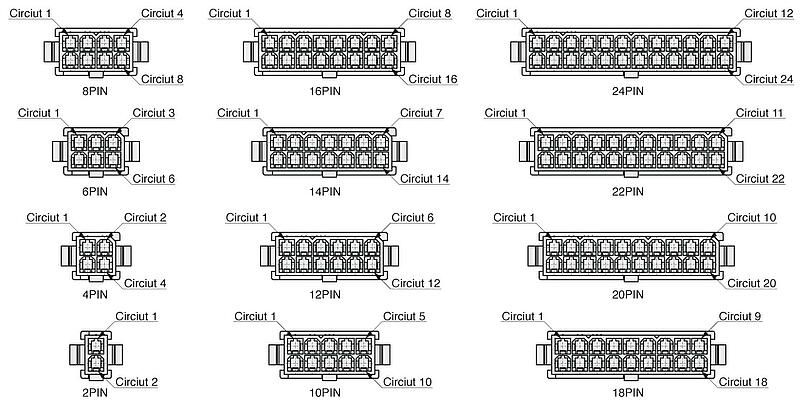

Illustration Crimp Housing for Pin Contacts 4,20 mm Crimp 576 2
Technical data
Moreless
Pitch (mm) 4,20
Pincount 2, 4, 6, 8 ... 24
Gender Male
Polarising yes
Locking Positive lock
Material insulator Thermoplast UL94V-2
Rated current IEC 9,0 A
Rated voltage 600 V RMS / V DC
Withstand voltage 1500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
No of rows 2
Cap With cap, With kapton tape, Without cap
Connection type Crimp
AWG 16, 18, 20, 22 ... 26
Positioning peg Without positioning peg
Packaging Standard
1 Crimp Housing for Pin Contacts 4,20 mm Crimp 576 2 2 Crimp Housing for Pin Contacts 4,20 mm Crimp 576 2 Crimp Housing for Pin Contacts 4,20 mm Crimp 576 2

Pincount
002
004
006
008
010
012
014
016
018
020
022
024
Configurate Your Product
Order code
576-2-???-X-KS0
Please finish Product configuration first

Pincount
To request list
Please finish Product configuration first
