204-1

Female Header with Turned Contacts 1,27 mm 204-1

Socket connectors, Female Header with Turned Contacts 1,27 mm

Single row version.

Available variations
Compare product

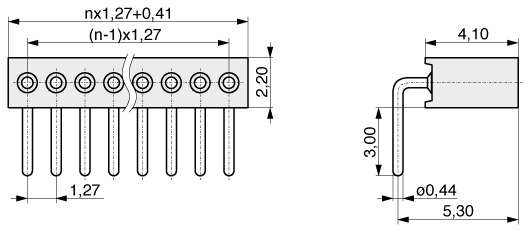

Illustration Female Header with Turned Contacts 1,27 mm  204-1
Technical data
Moreless
Pitch (mm) 1,27
Mating pin size (range) ø 0,38-0,50
Pincount 2, 3, 4, 5 ... 50
Gender Female
Polarising no
Locking No
Material contact Copper alloy
Plating contact Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 500 V RMS / V DC
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Clip style 3 finger clip
Plating clip Au, Au 0,75 µ
Material clip Berylium Copper
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
