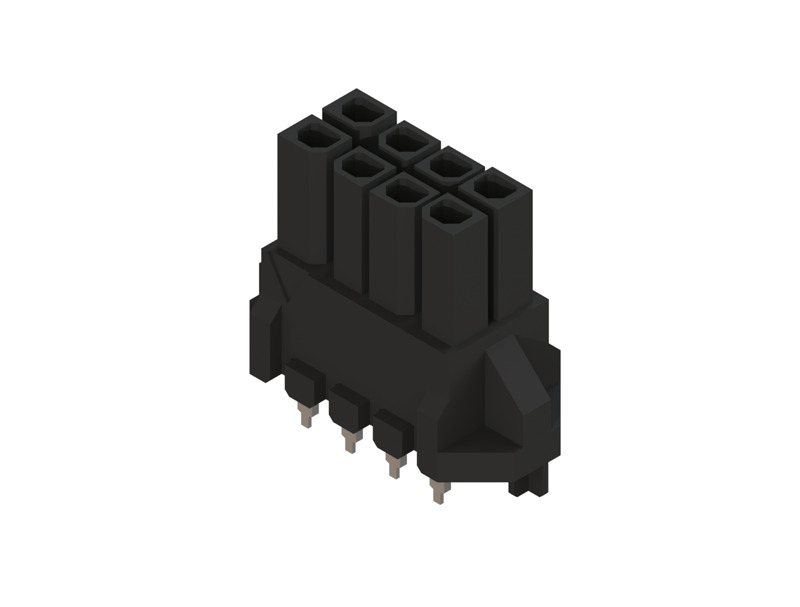

Technical data
Moreless| Pitch (mm) | 3,00 |
| Pincount | 4, 6, 8, 10 ... 24 |
| Gender | Female |
| Polarising | yes |
| Material contact | Phosphor bronze |
| Plating contact | Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 5,0 A |
| Rated voltage | 250 V RMS / V DC |
| Withstand voltage | 1500 V RMS for 1 Minute |
| Operating temperature | -25°C to +85°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 2 |
| Row distance (mm) | 3 |
| Positioning peg | With positioning peg |
| Contact style | Die cut |
| Packaging | Standard |

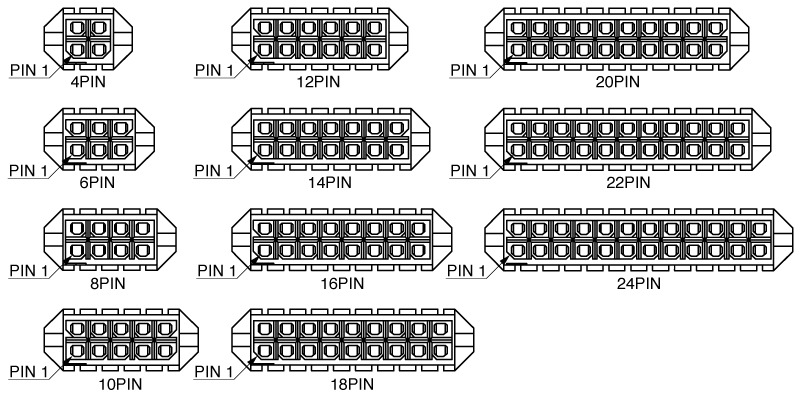

Drawing / Dimensions
Moreless
| Polzahl | A | B |
|---|---|---|
| 4 | 12,00 | 3,00 |
| 6 | 15,00 | 6,00 |
| 8 | 18,00 | 9,00 |
| 10 | 21,00 | 12,00 |
| 12 | 24,00 | 15,00 |
| 14 | 27,00 | 18,00 |
| 16 | 30,00 | 21,00 |
| 18 | 33,00 | 24,00 |
| 20 | 36,00 | 27,00 |
| 22 | 39,00 | 30,00 |
| 24 | 42,00 | 33,00 |
| 4 | 12,00 | 3,00 |
| 6 | 15,00 | 6,00 |
| 8 | 18,00 | 9,00 |
| 10 | 21,00 | 12,00 |
| 12 | 24,00 | 15,00 |
| 14 | 27,00 | 18,00 |
| 16 | 30,00 | 21,00 |
| 18 | 33,00 | 24,00 |
| 20 | 36,00 | 27,00 |
| 22 | 39,00 | 30,00 |
| 24 | 42,00 | 33,00 |
