Technical data
Moreless| Pitch (mm) | 1,27 |
| Pincount | 28, 32, 44, 52 ... 84 |
| Gender | Female |
| Material contact | Phosphor bronze |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 1,0 A |
| Rated voltage | 100 V RMS / V DC |
| Withstand voltage | 600 V RMS for 1 Minute |
| Operating temperature | -40°C to +85°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| Color | black, brown |
| Socket layout |
PLCC
|
| Type | IC Socket |
| Packaging | Tube |

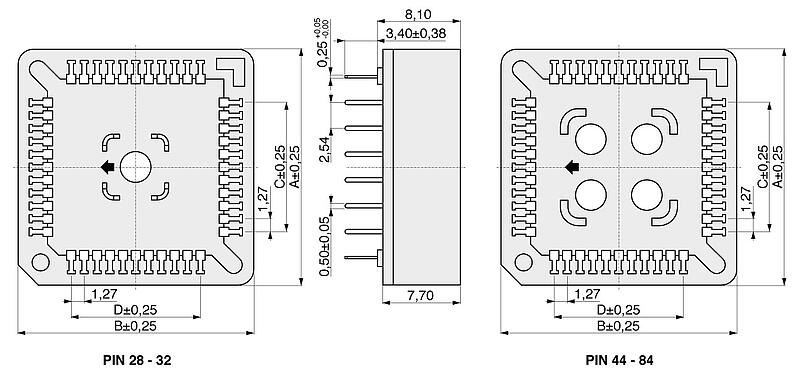

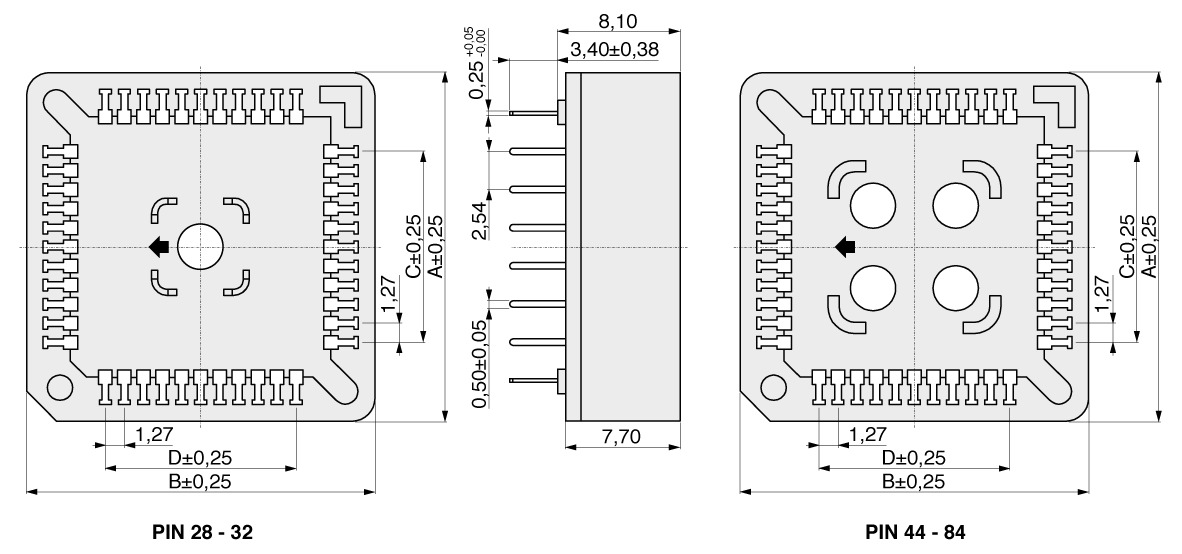

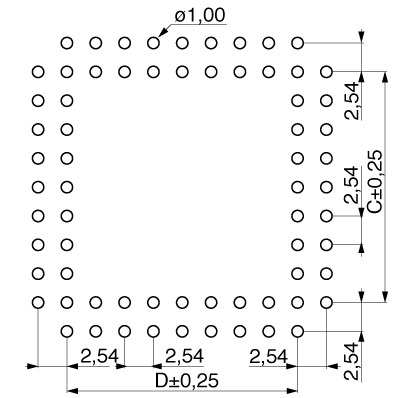

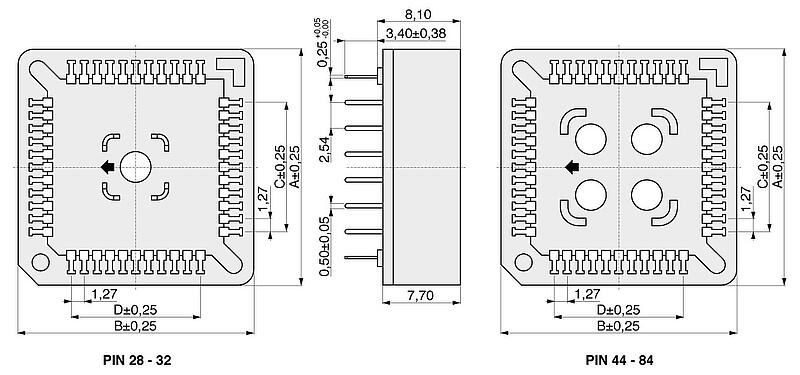

Drawing / Dimensions
Moreless
| Pincount | A | B | C | D |
|---|---|---|---|---|
| 028 | 18,00 | 18,00 | 7,62 | 7,62 |
| 032 | 18,10 | 20,65 | 7,62 | 10,16 |
| 044 | 23,05 | 23,05 | 12,70 | 12,70 |
| 052 | 25,72 | 25,70 | 15,24 | 15,24 |
| 068 | 30,80 | 30,80 | 20,32 | 20,32 |
| 084 | 36,00 | 36,00 | 25,40 | 25,40 |
