Order code not found. You may mean this product:
082-1

PLCC-SMD Socket 1,27 mm 082 1

PLCC Socket, PLCC-SMD Socket 1,27 mm

Normal variation.

Compare product

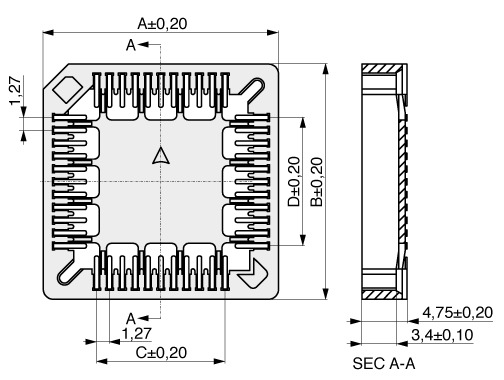

Illustration PLCC-SMD Socket 1,27 mm 082 1
Technical data
Moreless
Pitch (mm) 1,27
Pincount 20, 28, 32, 44 ... 84
Gender Female
Material contact Copper Alloy
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 600 V RMS for 1 Minute
Operating temperature -40°C to +85°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
Color black, brown
Socket layout PLCC PLCC
Type IC Socket
Packaging Reel, Tube

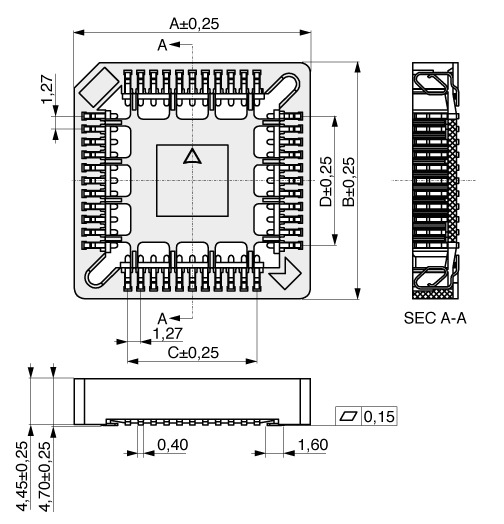

PLCC-SMD Socket 1,27 mm 082 1 PLCC-SMD Socket 1,27 mm 082 1

Pincount

A

B

C

D
02015,7015,705,085,08
02818,1918,197,627,62
03220,8018,1910,167,62
04423,2523,2512,7012,70
05225,8025,8015,2415,24
06830,8530,8520,3220,32
08435,9035,9025,4025,40
Configurate Your Product
Order code
082-1-???-?-X?0
Please finish Product configuration first

Pincount
Color
Packaging
