Pin Header with Turned Contacts 1,27 mm 192-3

Pin headers, Pin Header with Turned Contacts 1,27 mm

Three-row

Available variations
Compare product

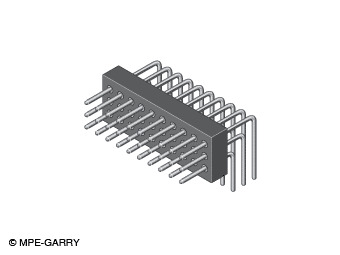

Illustration Pin Header with Turned Contacts 1,27 mm  192-3
Technical data
Moreless
Pitch (mm) 1,27
Pincount 9, 12, 15, 18 ... 150
Gender Male
Mating contact size ø 0,41
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 300 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 3
Row distance (code) 100 mil
Row distance (mm) 1,27
Contact style Turned
Socket layout Three-row Three-row
Packaging Standard
