Order code not found. You may mean this product:
192-2

Pin Header with Turned Contacts 1,27 mm 192 2

Pin headers, Pin Header with Turned Contacts 1,27 mm

Double row

Available variations
Compare product
Mating products
Show matching products

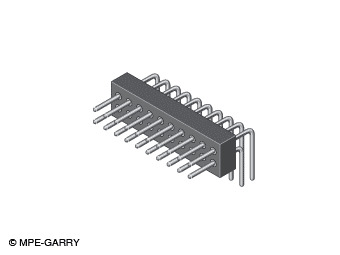

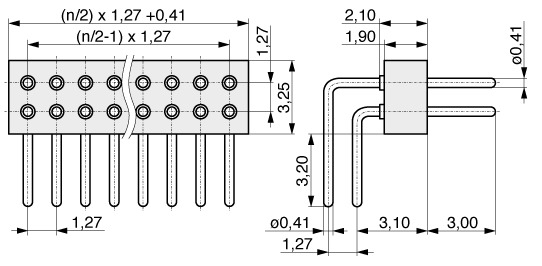

Illustration Pin Header with Turned Contacts 1,27 mm 192 2
Technical data
Moreless
Pitch (mm) 1,27
Pincount 4, 6, 8, 10 ... 100
Gender Male
Mating contact size ø 0,41
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 300 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 2
Row distance (code) 100 mil
Row distance (mm) 1,27
Contact style Turned
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Standard
Pin Header with Turned Contacts 1,27 mm 192 2 Pin Header with Turned Contacts 1,27 mm 192 2
Configurate Your Product
Order code
192-2-???-0-?-LS0
