  3. Pin Header SMD Shrouded 2,00 mm Series 155
Order code not found. You may mean this product:
155-3

Vertical version for SMD mounting


Your search was with an old part number. Here is the actual version.
Available variations
Compare product
Illustration
Technical data
Moreless
Pitch (mm) 2,00
Pincount 6, 8, 10, 12 ... 64
Gender Male
Polarising yes
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 2
Cap With cap, Without cap
Row distance (mm) 2
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Reel, Standard

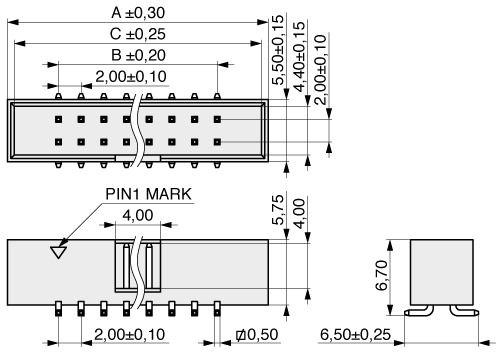

A 13, 15,00, 17,00, 19 ... 71,00
B 10,00, 18,00, 22,00, 24,00 ... 8,00
C 11,8, 13,80, 15,8, 17,8 ... 69,80
Pincount A B C
00613,004,0011,80
00815,006,0013,80
01017,008,0015,80
01219,0010,0017,80
01421,0012,0019,80
01623,0014,0021,80
02027,0018,0025,80
02431,0022,0029,80
02633,0024,0031,80
03037,0028,0035,80
03239,0030,0037,80
03441,0032,0039,80
04047,0038,0045,80
04451,0042,0049,80
05057,0048,0055,80
06067,0058,0065,80
06471,0062,0069,80
Configurate Your Product
Order code
155-3-???-0-?-B??
