337-2

Pin Header SMD Sandwich 2,00 mm 337 2

Pin headers, Pin Header SMD Sandwich 2,00 mm

Single row, layout 2

Available variations
Compare product

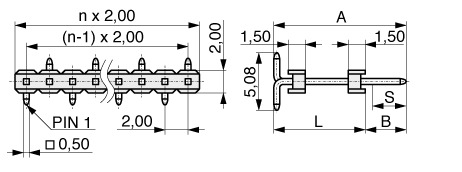

Illustration Pin Header SMD Sandwich 2,00 mm  337  2
Technical data
Moreless
Pitch (mm) 2,00
Pincount 3, 4, 5, 6 ... 40
Gender Male
Mating contact size ø 0,50
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 1
Cap With cap, Without cap
Positioning peg Without positioning peg
Contact style Die cut
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
A (Length) 10,70, 11,86, 12,37, 17,35, 7,85
B (Mating) 4,3
L 13,05, 3,55, 6,40, 7,56, 8,07
 Pin Header SMD Sandwich 2,00 mm  337  2 Pin Header SMD Sandwich 2,00 mm  337  2
A (Length)B (Mating)L
7,854,303,55
10,704,306,40
11,864,307,56
12,374,308,07
17,354,3013,05

Other dimensions on request!
