Technical data
Moreless| Pitch (mm) | 2,00 |
| Pincount | 4, 6, 8, 10 ... 40 |
| Gender | Male |
| Polarising | no |
| Locking | No |
| Material contact | Copper alloy |
| Plating contact | Au, Selective Au, Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 1,5 A |
| Rated voltage | 150 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
SMD Gull Wing
|
| Orientation to PCB |
Vertical
|
| No of rows | 1 |
| Cap | With cap, Without cap |
| Positioning peg | Without positioning peg |
| Contact style | Die cut |
| Socket layout |
SIL strip (Single-in-line)
|
| Packaging | Standard |
| A | 10,70, 11,86, 12,37, 17,35, 7,85 |
| B | 4,3 |
| L | 13,05, 3,55, 6,40, 7,56, 8,07 |

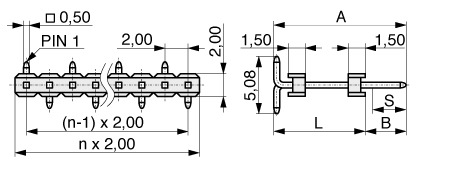

Drawing / Dimensions
Moreless
| A | B | L |
|---|---|---|
| 7,85 | 4,30 | 3,55 |
| 10,70 | 4,30 | 6,40 |
| 11,86 | 4,30 | 7,56 |
| 12,37 | 4,30 | 8,07 |
| 17,35 | 4,30 | 13,05 |
Other dimensions on request!
