Order code not found. You may mean this product:
152-3

Pin Header SMD 2,00 mm 152 3

Pin headers, Pin Header SMD 2,00 mm

DIL pinheader

Available variations
Compare product

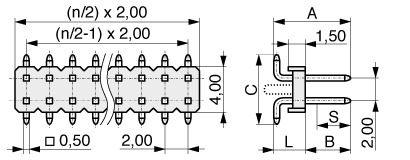

Illustration Pin Header SMD 2,00 mm  152  3
Technical data
Moreless
Pitch (mm) 2,00
Pincount 4, 6, 8, 10 ... 80
Gender Male
Mating contact size ø 0,50
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 2
Cap With cap, Without cap
Row distance (mm) 2
Positioning peg With positioning peg, Without positioning peg
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Reel, Tube
A (Length) 5,50, 5,80, 6,20, 6,35 ... 6,77
B (Mating) 3,4, 3,5, 3,8, 4
C 6,00, 6,34, 6,70, 7,44, 7,96
L 2,10, 2,20, 2,30, 2,35, 2,77
 Pin Header SMD 2,00 mm  152  3 Pin Header SMD 2,00 mm  152  3
A (Length) B (Mating) C L
5,503,407,962,10
5,803,507,442,30
6,204,006,702,20
6,354,006,342,35
6,573,806,002,77
6,774,006,002,77
