Order code not found. You may mean this product:
152-2

Pin Header SMD 2,00 mm 152-2

Pin headers, Pin Header SMD 2,00 mm

Single row, layout 2

Available variations
Compare product

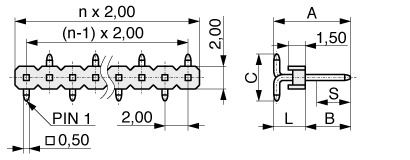

Illustration Pin Header SMD 2,00 mm  152-2
Technical data
Moreless
Pitch (mm) 2,00
Pincount 3, 4, 5, 6 ... 40
Gender Male
Mating contact size ø 0,50
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 1
Cap With cap, Without cap
Positioning peg Without positioning peg
Contact style Die cut
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Reel, Tube
A 12,42, 6,00, 6,10, 6,77, 6,85
B 10,22, 3,9, 4
C 3,35, 4,50, 4,80, 5,74
L 2,10, 2,20, 2,77, 2,85
 Pin Header SMD 2,00 mm  152-2 Pin Header SMD 2,00 mm  152-2
A B C L
6,003,905,742,10
6,104,004,802,10
6,774,004,502,77
6,854,003,352,85
12,4210,224,802,20
