665-1

Pin Header Shrouded 2,00 mm 665 1

Pin headers, Pin Header Shrouded 2,00 mm

For vertical board mounting.

Available variations
Compare product

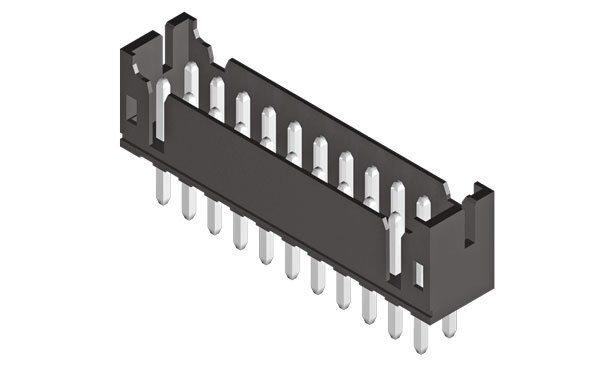

Illustration Pin Header Shrouded 2,00 mm  665  1
Technical data
Moreless
Pitch (mm) 2,00
Pincount 6, 8, 10, 12 ... 32
Gender Male
Mating contact size ø 0,50
Polarising yes
Locking No
Material contact Copper alloy
Plating contact Sn
Material insulator Thermoplast UL94V-0
Rated current IEC 2,0 A (3,0 A mit AWG 22)
Rated voltage 125 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +85°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Contact style Die cut
Packaging Standard
A (Length) 10,00, 12,00, 14, 16 ... 8,00
B (Mating) 10,00, 4, 6, 12 ... 8,00
 Pin Header Shrouded 2,00 mm  665  1 Pin Header Shrouded 2,00 mm  665  1
Pincount A (Length) B (Mating)
0068,004,00
00810,006,00
01012,008,00
01214,0010,00
01416,0012,00
01618,0014,00
01820,0016,00
02022,0018,00
02224,0020,00
02426,0022,00
02628,0024,00
02830,0026,00
03032,0028,00
03234,0030,00
