Order code not found. You may mean this product:
183-2

Pin Header Sandwich Shrouded 1,27 mm 183-2

Pin headers, Pin Header Sandwich Shrouded 1,27 mm

1.27 mm pitch tub connector with polarized housing and centering pins for SMD mounting. Height variable

Available variations
Compare product
Illustration Pin Header Sandwich Shrouded 1,27 mm  183-2
Technical data
Moreless
Pitch (mm) 1,27
Pincount 10, 12, 14, 16 ... 100
Gender Male
Mating contact size ø 0,40
Polarising yes
Locking No
Material contact Copper alloy
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,0 A
Rated voltage 100 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
No of rows 2
Cap With cap, Without cap
Row distance (mm) 1,27
Positioning peg With positioning peg
Contact style Die cut
Packaging Reel, Tube
A 10,1, 10,9, 11,2, 11,50 ... 9,90
B 2,15, 2,50

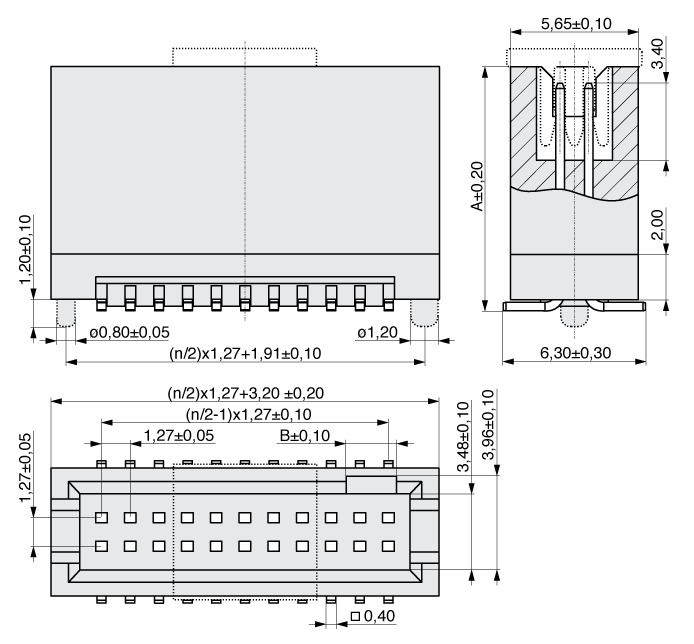

 Pin Header Sandwich Shrouded 1,27 mm  183-2 Pin Header Sandwich Shrouded 1,27 mm  183-2
A B
5,752,50
6,102,50
9,502,15
9,902,15
10,102,15
10,902,15
11,202,15
11,502,15
11,702,15
12,002,15
12,702,15
13,502,15
14,602,15
15,702,15
16,102,15
17,802,15
18,902,15
