Order code not found. You may mean this product:
151-2

Pin Header Sandwich 2,00 mm 151 2

Pin headers, Pin Header Sandwich 2,00 mm

DIL pin headers

Available variations
Compare product

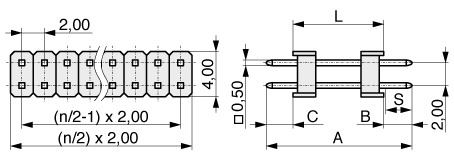

Illustration Pin Header Sandwich 2,00 mm  151  2
Technical data
Moreless
Pitch (mm) 2,00
Pincount 4, 6, 8, 10 ... 80
Gender Male
Mating contact size ø 0,50
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Row distance (mm) 2
Contact style Die cut
Socket layout DIL strip (Dual-in-line) DIL strip (Dual-in-line)
Packaging Standard
A (Length) 14,50, 16,85, 20,50
B (Mating) 2,4, 4
C 2,45, 2,50
L 12,00, 14,00, 8,00
 Pin Header Sandwich 2,00 mm  151  2 Pin Header Sandwich 2,00 mm  151  2
A (Length)B (Mating)CL
14,504,002,508,00
16,852,402,4512,00
20,504,002,5014,00
