151-1

Pin Header Sandwich 2,00 mm 151 1

Pin headers, Pin Header Sandwich 2,00 mm

SIL pin headers

Available variations
Compare product

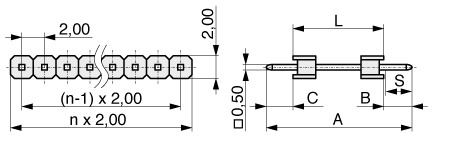

Illustration Pin Header Sandwich 2,00 mm  151  1
Technical data
Moreless
Pitch (mm) 2,00
Pincount 2, 3, 4, 5 ... 40
Gender Male
Mating contact size ø 0,50
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 1,5 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 1
Contact style Die cut
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
A (Length) 14,50, 16,85, 20,50
B (Mating) 2,4, 4
C 2,45, 2,50
L 12,00, 14,00, 8,00
 Pin Header Sandwich 2,00 mm  151  1 Pin Header Sandwich 2,00 mm  151  1
A (Length) B (Mating) C L
14,504,002,508,00
16,852,402,4512,00
20,504,002,5014,00

Other dimensions on request!
