Order code not found. You may mean this product:
130-3

Pin Header Press-fit with Turned Contacts 2,54 mm 130 3

Pin headers, Pin Header Press-fit with Turned Contacts 2,54 mm

SIL pin headers, board thickness 2.1 - 3.2 mm

Available variations
Compare product

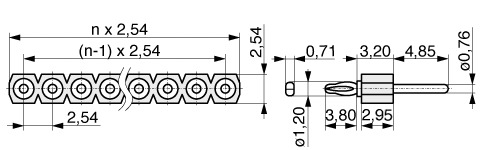

Illustration Pin Header Press-fit with Turned Contacts 2,54 mm  130  3
Technical data
Moreless
Pitch (mm) 2,54
Pincount 1, 2, 3, 4 ... 64
Gender Male
Mating contact size ø 0,76
Polarising no
Locking No
Material contact Phosphor bronze
Plating contact Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +125°C
Max. processing temper. 260°C for 10 seconds
Board termination Press-fit Press-fit
Orientation to PCB Vertical Vertical
No of rows 1
Contact style Turned
Socket layout SIL strip (Single-in-line) SIL strip (Single-in-line)
Packaging Standard
