Order code not found. You may mean this product:
571-5

Pin Header 4,20 mm 571 5

Pin headers, Pin Header 4,20 mm

Single row with mounting flange

Available variations
Compare product
Illustration Pin Header 4,20 mm 571 5
Technical data
Moreless
Pitch (mm) 4,20
Pincount 2, 3, 4, 5
Gender Male
Polarising yes
Locking Positive lock
Material contact Copper alloy
Plating contact Sn
Material insulator Thermoplast UL94V-2
Rated current IEC 9,0 A
Rated voltage 600 V RMS / V DC
Withstand voltage 1500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Contact style Die cut
Packaging Standard

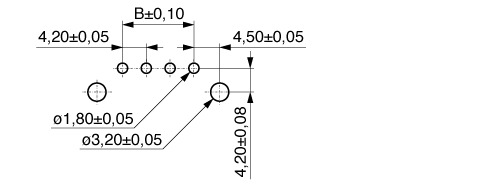

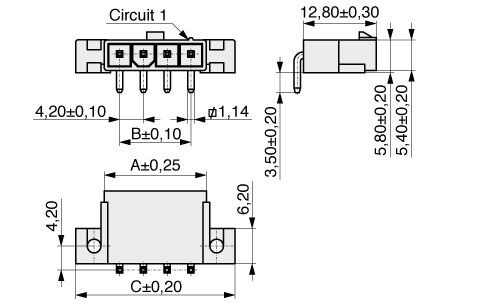

A (Length) 13,80, 18,00, 22,2, 9,60
B (Mating) 12,60, 16,80, 4,20, 8,40
C 19,60, 23,80, 28,00, 32,20
1 Pin Header 4,20 mm 571 5 2 Pin Header 4,20 mm 571 5 3 Pin Header 4,20 mm 571 5 4 Pin Header 4,20 mm 571 5 5 Pin Header 4,20 mm 571 5 Pin Header 4,20 mm 571 5
Pincount A (Length) B (Mating) C
0029,604,2019,60
00313,808,4023,80
00418,0012,6028,00
00522,2016,8032,20
Configurate Your Product
Order code
571-5-???-0-T-KS0
Please finish Product configuration first

Pincount
