571-3

Pin Header 4,20 mm 571 3

Pin headers, Pin Header 4,20 mm

Double row

Available variations
Compare product

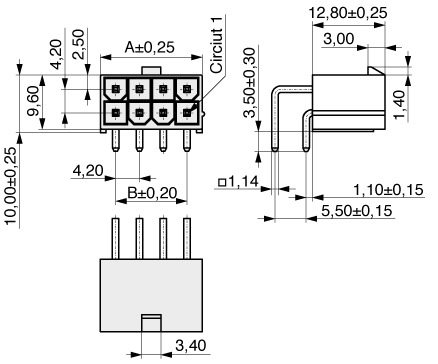

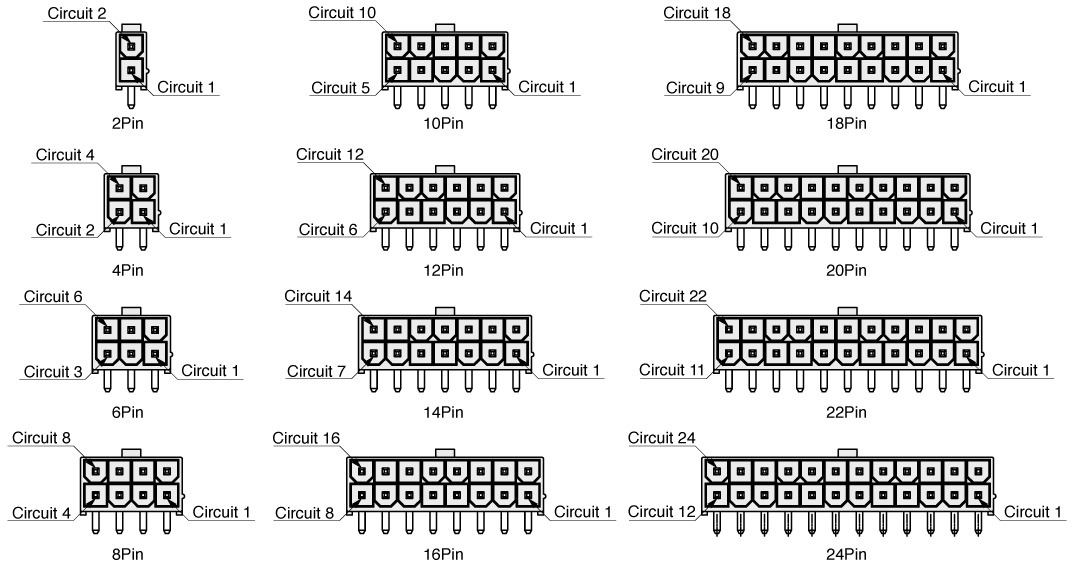

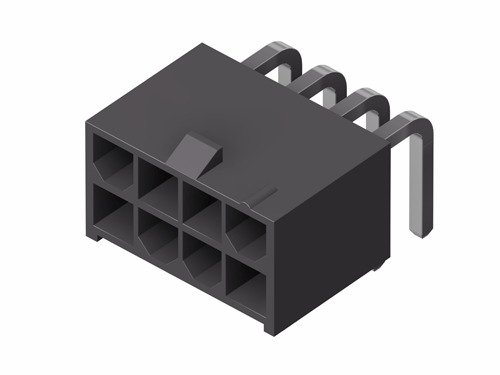

Illustration Pin Header 4,20 mm  571  3
Technical data
Moreless
Pitch (mm) 4,20
Pincount 2, 4, 6, 8 ... 24
Gender Male
Polarising yes
Locking Positive lock
Material contact Copper alloy
Plating contact Sn
Material insulator Thermoplast UL94V-2
Rated current IEC 9,0 A
Rated voltage 600 V RMS / V DC
Withstand voltage 1500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 230°C for 5 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 2
Positioning peg Without positioning peg
Contact style Die cut
Packaging Standard
A (Length) 13,80, 18,00, 22,2, 26,40 ... 9,60
B (Mating) -, 12,60, 16,80, 21,00 ... 8,40
C -
 1 Pin Header 4,20 mm  571  3 2 Pin Header 4,20 mm  571  3 3 Pin Header 4,20 mm  571  3 4 Pin Header 4,20 mm  571  3 5 Pin Header 4,20 mm  571  3 6 Pin Header 4,20 mm  571  3 7 Pin Header 4,20 mm  571  3 8 Pin Header 4,20 mm  571  3 9 Pin Header 4,20 mm  571  3 10 Pin Header 4,20 mm  571  3 11 Pin Header 4,20 mm  571  3 12 Pin Header 4,20 mm  571  3 13 Pin Header 4,20 mm  571  3 Pin Header 4,20 mm  571  3
PincountA (Length)B (Mating)C
0025,40--
0049,604,20-
00613,808,40-
00818,0012,60-
01022,2016,80-
01226,4021,00-
01430,6025,20-
01634,8029,40-
01839,0033,60-
02043,2037,80-
02247,4042,00-
02451,6046,20-
