Order code not found. You may mean this product:
347-2

Pin Header 2,50 mm 347 2

Pin headers, Pin Header 2,50 mm

Right angled (parallel)

Available variations
Compare product

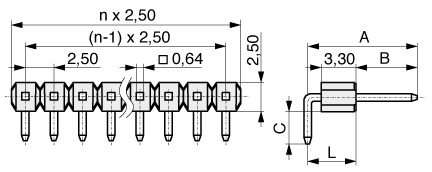

Illustration Pin Header 2,50 mm 347 2
Technical data
Moreless
Pitch (mm) 2,50
Pincount 1, 2, 3, 4 ... 40
Gender Male
Mating contact size ø 0,64
Polarising no
Locking No
Material contact Copper alloy
Plating contact Au, Selective Au, Sn
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 3,0 A
Rated voltage 250 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Parallel Parallel
No of rows 1
Packaging Standard
A (Length) 10,00, 10,80, 13,80, 15,90 ... 8,70
Pin Header 2,50 mm 347 2 Pin Header 2,50 mm 347 2
A (Length) B (Mating) C L
7,403,503,003,90
8,704,803,003,90
10,006,103,003,90
10,806,903,003,90
13,809,903,003,90
15,9012,003,003,90
17,7013,803,003,90
18,9015,003,003,90
21,0017,103,003,90
Configurate Your Product
Order code
347-2-???-0-?-XS0-????
Please finish Product configuration first

Pincount
Plating contact
A (Length)
To request list
Please finish Product configuration first
