Technical data
Moreless| Pitch (mm) | 2,50 |
| Pincount | 1, 2, 3, 4 ... 40 |
| Gender | Male |
| Mating contact size | ø 0,64 |
| Polarising | no |
| Locking | No |
| Material contact | Copper alloy |
| Plating contact | Au, Selective Au, Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 3,0 A |
| Rated voltage | 250 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
Through hole
|
| Orientation to PCB |
Vertical
|
| No of rows | 1 |
| Packaging | Standard |
| A | 10,20, 10,80, 11,30, 12,60 ... 24,90 |

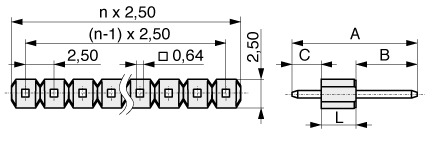

Drawing / Dimensions
Moreless
| A | B | C | L |
|---|---|---|---|
| 10,20 | 4,40 | 2,50 | 3,30 |
| 10,80 | 5,00 | 2,50 | 3,30 |
| 11,30 | 4,70 | 3,30 | 3,30 |
| 12,60 | 6,00 | 3,30 | 3,30 |
| 14,00 | 7,40 | 3,30 | 3,30 |
| 14,50 | 7,90 | 3,30 | 3,30 |
| 14,80 | 8,20 | 3,30 | 3,30 |
| 17,90 | 11,30 | 3,30 | 3,30 |
| 19,80 | 13,20 | 3,30 | 3,30 |
| 21,60 | 15,00 | 3,30 | 3,30 |
| 22,80 | 16,20 | 3,30 | 3,30 |
| 24,90 | 18,30 | 3,30 | 3,30 |
